Industrial 8in Jointer JN-200C NZ guard

Stock Code:
JN-200C
Price:
$3,149.00 inc GST

Description

New look, new code, same great machine! We have updated the look & product code of our CTJ-350 (now JN-200C), however be assured, all specifications of this machine are the same as our beloved CTJ-350.

Simply the best jointer in its class bar none!

The Carbatec 8" Industrial Long Bed Jointer.

Featuring an extra long 1950mm bed for superior stock support and a superior parallelogram system for easy and accurate table adjustments. This system also produces less chipping as the tables follow the arc of the cutterblock when the table is raised or lowered. It also allows for more positive adjustment and there is none of the slack frequently found when using ordinary screw-type adjustment wheels.

A centre-mounted tilt fence provides solid support and a triple blade cutterhead provides a smooth cut at 16,500cpm.

NVR Stop Switch Included.

NOTE:

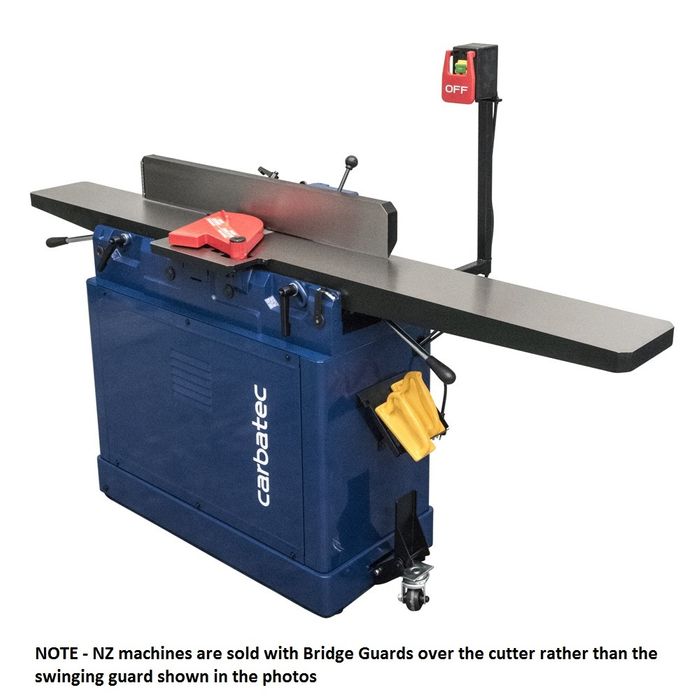

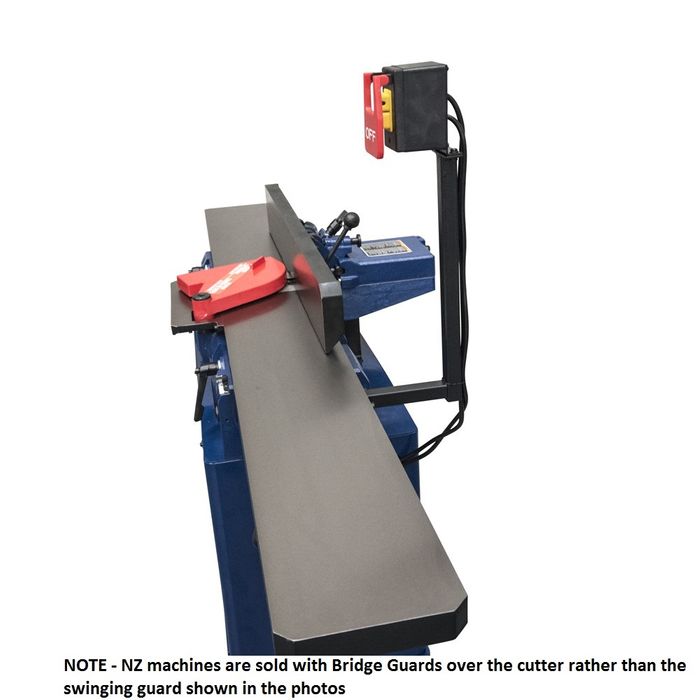

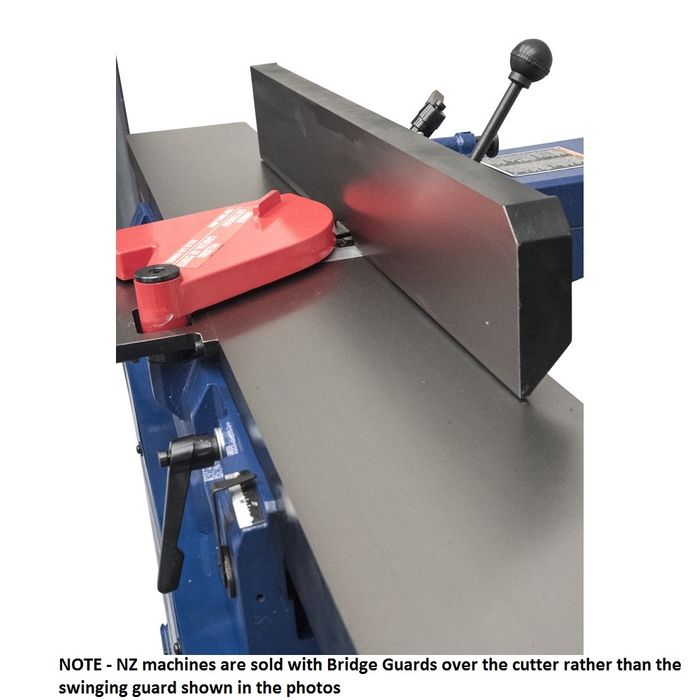

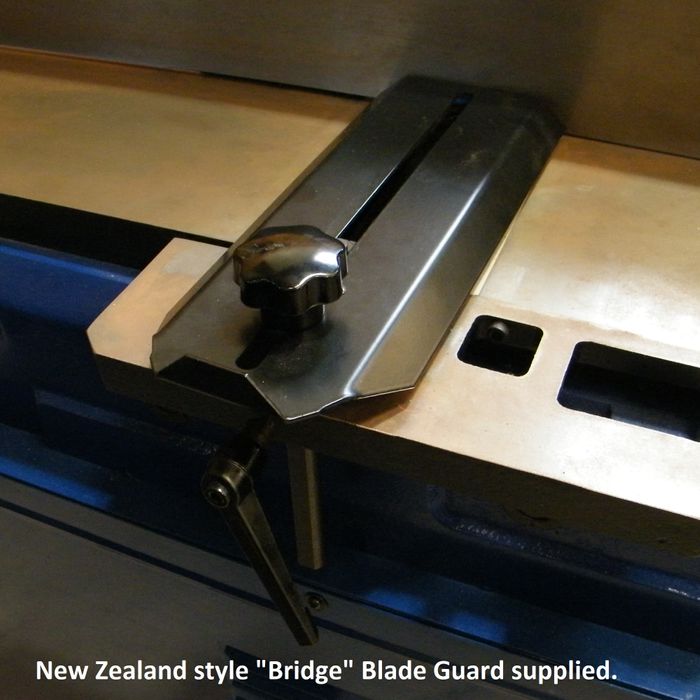

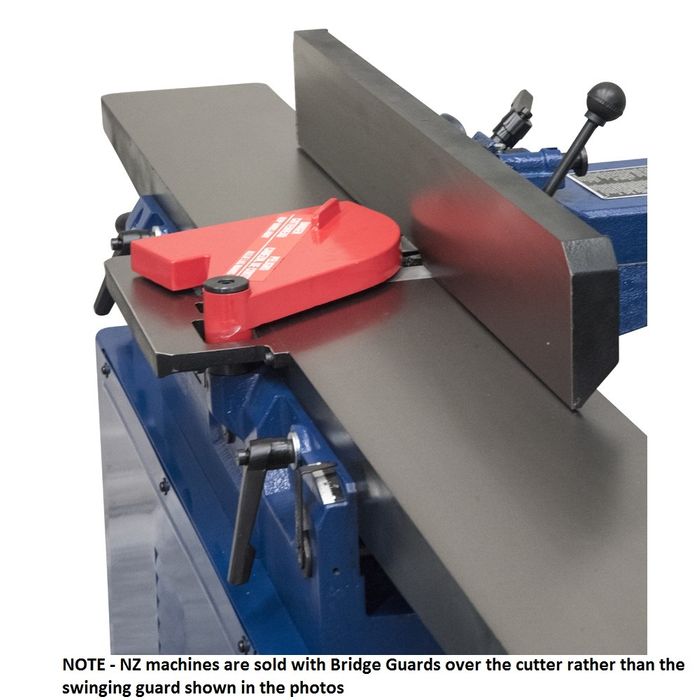

1. NZ machines are sold with Bridge Guards over the cutter rather than the swinging guard shown in the photos.

2. The overhand planing function of this machine is commonly called a jointer as it is for creating straight and square edges for joints between boards. This overhand operation has also been called a "Buzzer" due to the noise made by straight knife machines. Many people refer to these machines where timber travels over the top of the cutter as Buzzers.

Product Specifications

Brand Carbatec
Blade Guard Bridge Style
Cutterhead Straight 3 knife
Dust Port 1 x 100mm
Fence Tilt 45°/90°/ + 45°
Motor 1.1kW (1.5HP) Induction, 10A plug
Positive Stops 45° & 90°
Rabbeting Capacity 17mm
Stand Integral Enclosed Cabinet
Switch Type Magnetic NVR
Table Size 1950mm
Width 200mm
Workshop Footprint (WxDxH) 1950mm x 670mm x 1310mm
Shipping Weight 245Kg
Nett Weight 230Kg
