Industrial 6in longbed Jointer Spiral NZ Guard

Stock Code:
JN-LX150C
Price:
$3,299.00 inc GST

Description

Features & Benefits

* Powerful 750W motor
* Built-in castors
* Fully enclosed base
* Cast iron table and fence
* Spiral cutter head making cleaner shear cuts
* Superior parallelogram table adjustment system (SEE VIDEO)

Description

New look, new code, same great machine! We have updated the look & product code of our CTJ-150X (now JN-LX150C), however be assured, all specifications of this machine are the same as our beloved CTJ-150X.

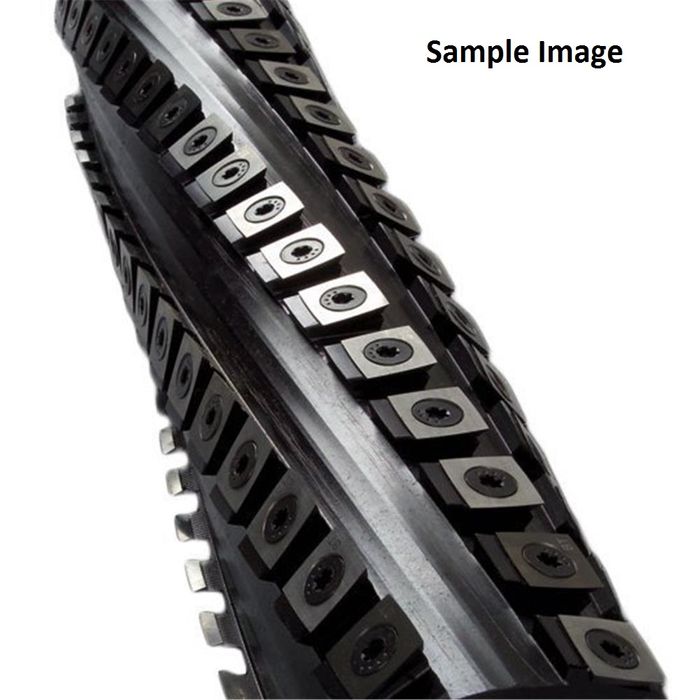

Spiral cutterheads revolutionise your woodwork! Although the cut depth per pass may be less than equivalent standard cutterheads; they will offer significantly quieter running; quieter cutting; less chatter and tear out in curly or highly figured wood along with a far superior overall finish; requiring far less finish sanding. These cutterheads will save hours of clean up work after dressing timber. The four-sided knives; which can be turned to offer a new cutting edge in seconds are fine grain tungsten carbide and are held in place by a Torx style screw. Knives of this type last 3 to 5 times longer than good quality HSS knives. Multiply this by four cutting edges and you achieve 12 to 20 times normal blade life. They are easily turned and seated to present a fully sharpened and indexed cutting edge; no complex blade setting or jigs required; you only have to replace a knife when all four edges have been used.

NOTE:

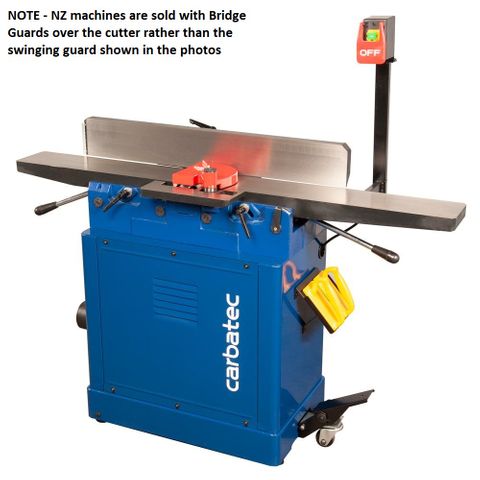

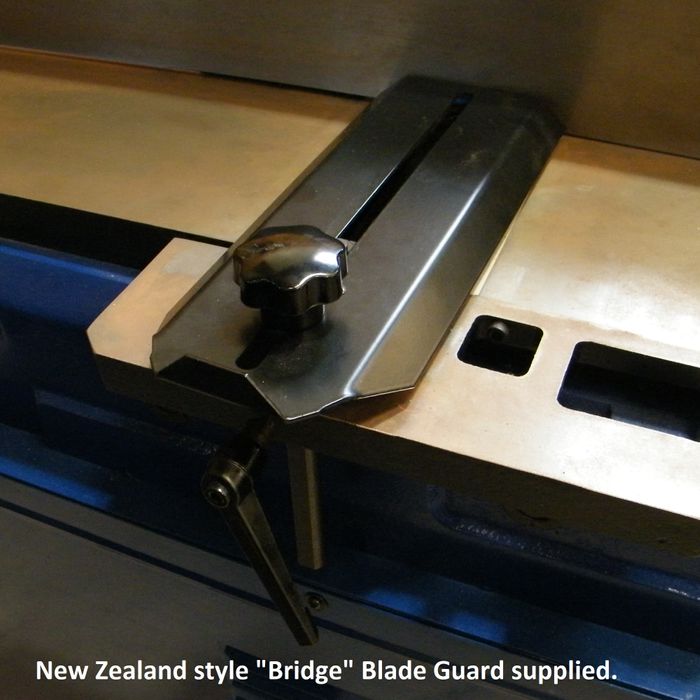

1. NZ machines are sold with Bridge Guards over the cutter rather than the swinging guard shown in the photos.
2. The overhand planing function of this machine is commonly called a jointer as it is for creating straight and square edges for joints between boards. This overhand operation has also been called a "Buzzer" due to the noise made by straight knife machines. Many people refer to these machines where timber travels over the top of the cutter as Buzzers.

Product Specifications

Brand Carbatec
Blade Guard Bridge Style
Cutterhead Spiral
Dust Port 1 x 100mm
Fence Tilt 45°/90°/ + 45°
Motor 0.75kW (1.0HP) Induction, 10A plug
Positive Stops 45° & 90°
Rabbeting Capacity 15mm
Stand Included Or Integral Enclosed Cabinet
Switch Type Magnetic NVR
Table length 1410mm
Width 152mm
Workshop Footprint (WxDxH) 1410mm x 600mm x 1310mm
Warranty Period 3 Years
Shipping Weight 150Kg
Nett Weight 135Kg
