Nova Orion Special Edition DVR Lathe
Description
Orion Special Edition (SE) - 206Kg and 1090mm between centres
SE updates in 2026 are:

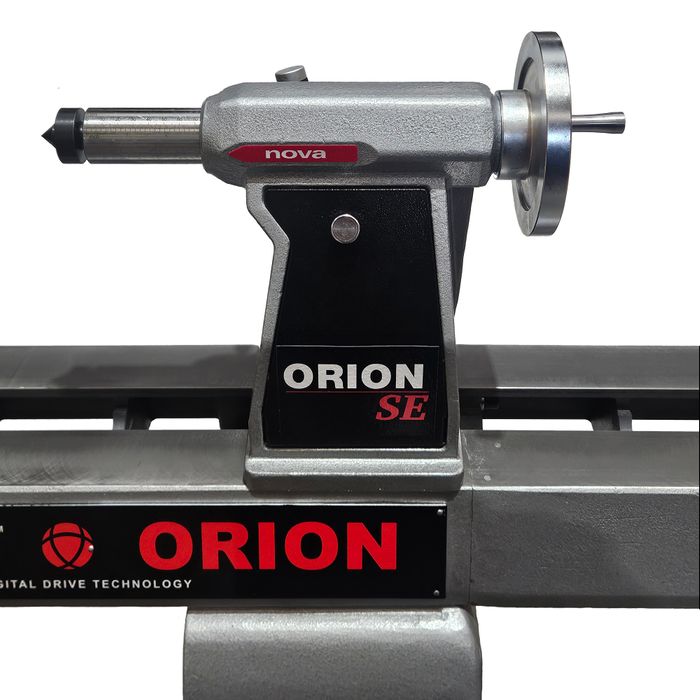

* a new tailstock with the handle out of the way at the rear, tool storage on front and back of the tailstock.

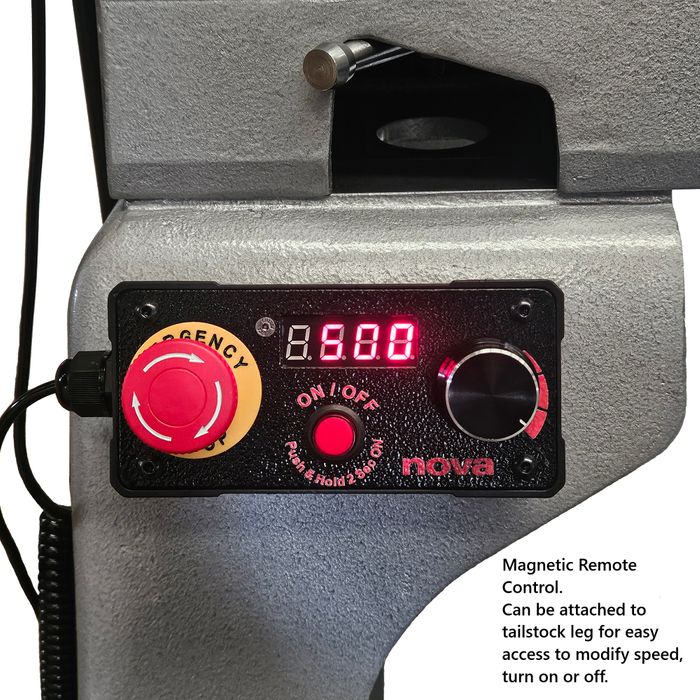

* remote control with on/off, speed control and emergency stop. Can be located anywhere on the lathe bed, allowing easier access to switch on/off and adjust the speed of the lathe when turning large pieces.
This lathe combines the best features of larger lathes – power, capacity and capability with state-of-the-art technology to make your turning more efficient, fun and safer.

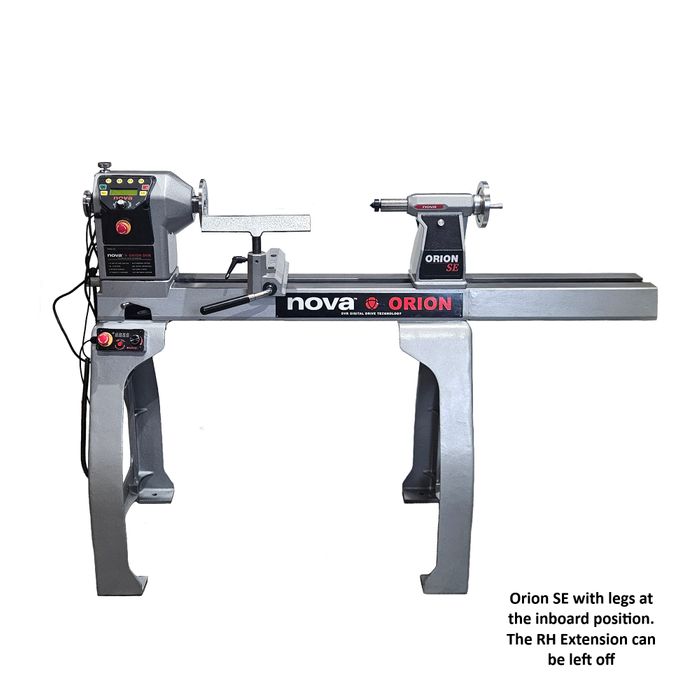

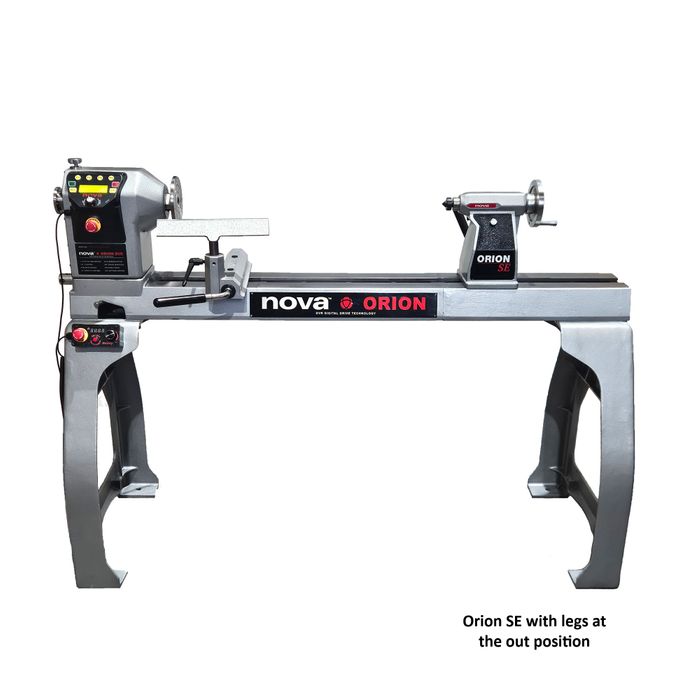

Bed extension included in the crate. Legs can be installed 2 positions, at the end of the lathe, or with the extension cantilevered past the legs. The bed extension can also be left off if you are tight on space.
A long bed is popular to increase the capabilities of the lathe, when drilling, turning longer spindles or just getting better access without needing to remove the tailstock.
The swivel head and articulated Outrigger Accessory (sold separately), means that even when turning large bowls (29”), you are still turning in the same compact area. With no pulleys or belts to vibrate, the Award-Winning DVR Direct Drive Motor is incredibly smooth and delivers intelligent control to your turning experience.

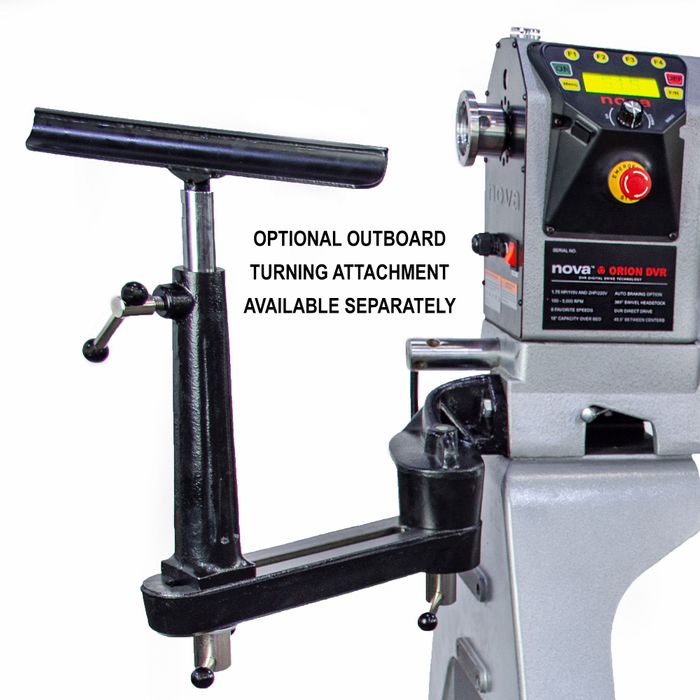

Outboard turning attachment available as an optional accessory - see TK-55266
FEATURES AND BENEFITS
* Direct Drive - No belts to adjust or cause vibrations.

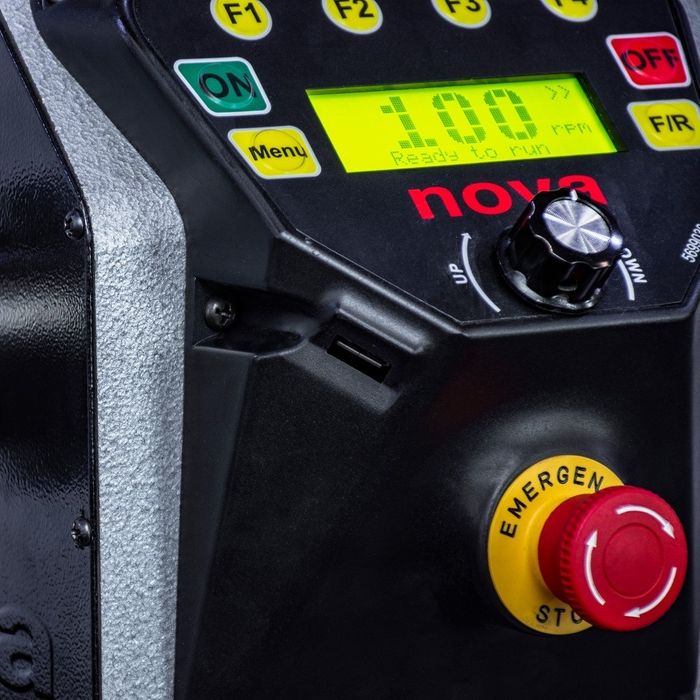

* Speed dial has both coarse and fine adjustment (push in for coarse speed changes)
* High torque DVR drive with constant speed maintenance (senses load and adjusts power to maintain speed)

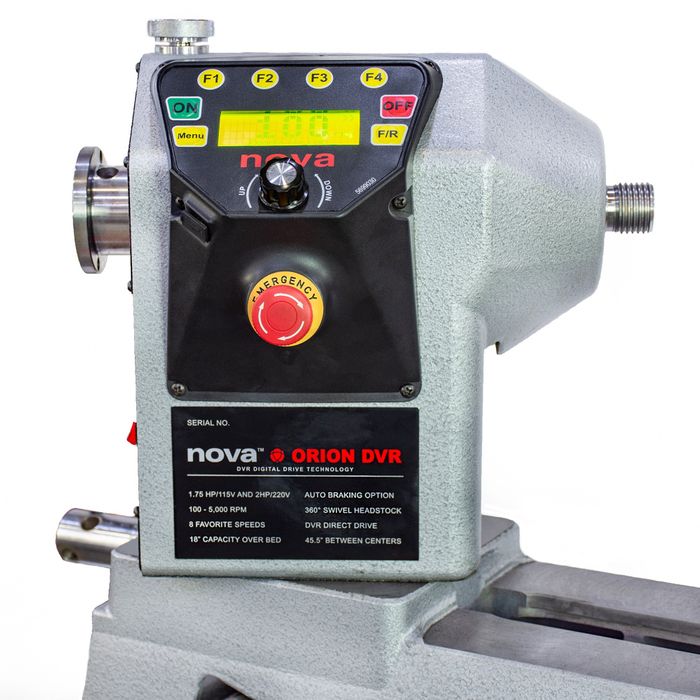

* 360° Swivel Headstock, lock at any position, plus detent locating positions at 0°, 22.5°, 45° and 90°.
* Solid Bed Structure, CAD designed webbing to absorb vibration throughout the bed length.
* Two Emergency Stops - one moveable on a cord
* Program your 8 favorite speeds
* Vibration Sensing
* Idle Motor Detection
* Upgradeable Firmware
* Self-Ejecting Tailstock Centre
* Centre storage (4) in tailstock.
SPECIFICATIONS
* Bowl turning capacity: 18"/457mm inboard, 29”/736mm outboard (using optional outrigger accessory)
* Spindle centre is 1125mm above the floor.
* Spindle Thread: 1 1/4" x 8TPI RH (USA, Canada, Australasia, New Zealand)
* Between Centers: 1090mm
* 2HP 230V DVR Direct Drive Motor
* 100 – 5,000 RPM continual Variable Speed with dial for precise and fast speed control
* Self-Ejecting 2MT Hollow Tailstock with 120mm travel
* 8 Adjustable Favorite Speeds
* Electronic Auto Braking
* Speed Selection Chart
* Weight: 206 kgs
* Dimensions: 1680mm x 600mm footprint of legs.
* Dimensions: 1260mm height to top of spindle lock.
WARRANTY:
* 5 Year Warranty on Parts and Components
* 2 Year Warranty on Motor and Electronics
* Restrictions apply
-
