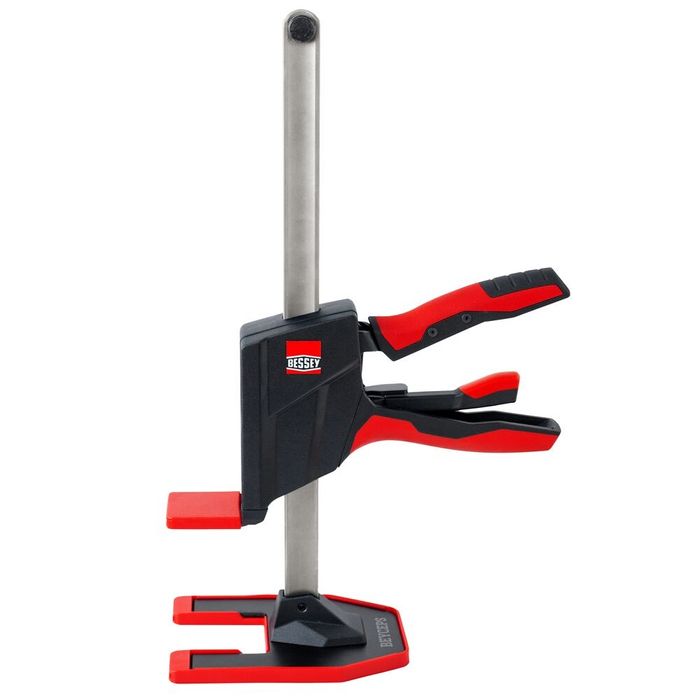

Bessey Beyceps

Stock Code:
BES-BEYCEPS
Price:
$319.00 inc GST

Description

Bessey Beyceps

Product description

Powerful and versatile

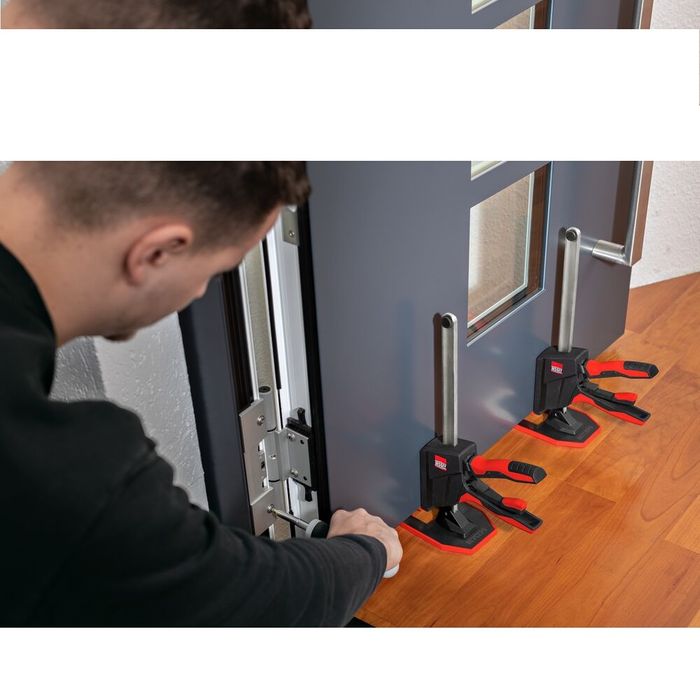

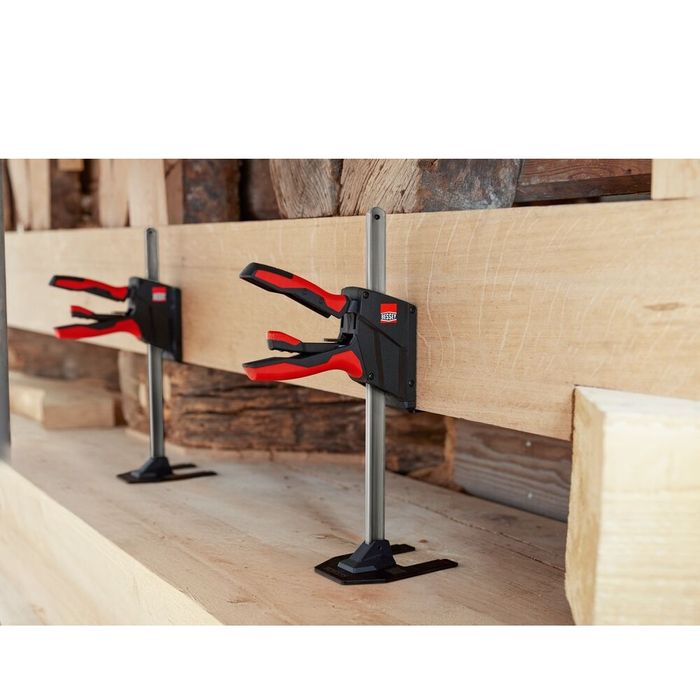

* The BEYCEPS enables assembly work with a lifting force of up to 180 kg. There are many possible applications in both the professional and DIY sectors:

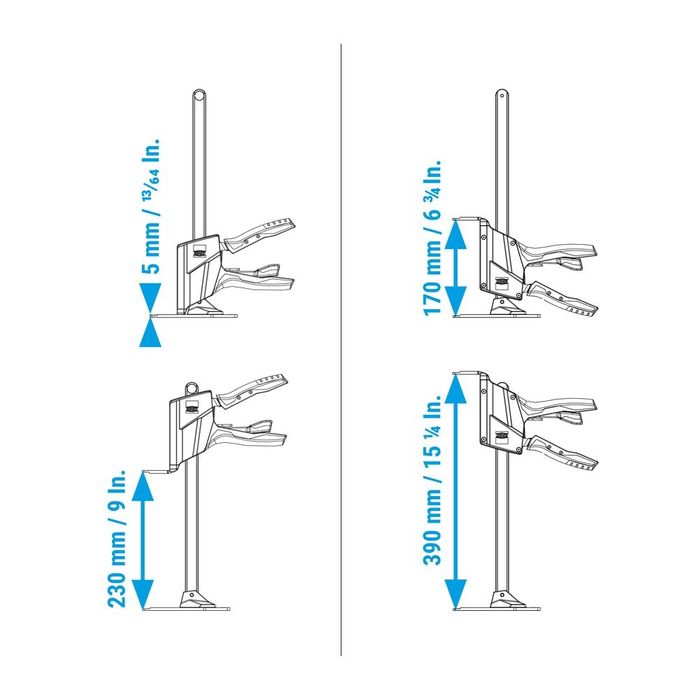

* Large usable range when lifting or spreading from 5 to 230 mm (without mounted protective cap on the stand)

* Quick, tool-free conversion for a working range of 170 to 390 mm

* Combinie it with the BEY-IK installation kit available as an accessory to increase usable range (392mm-620mm)

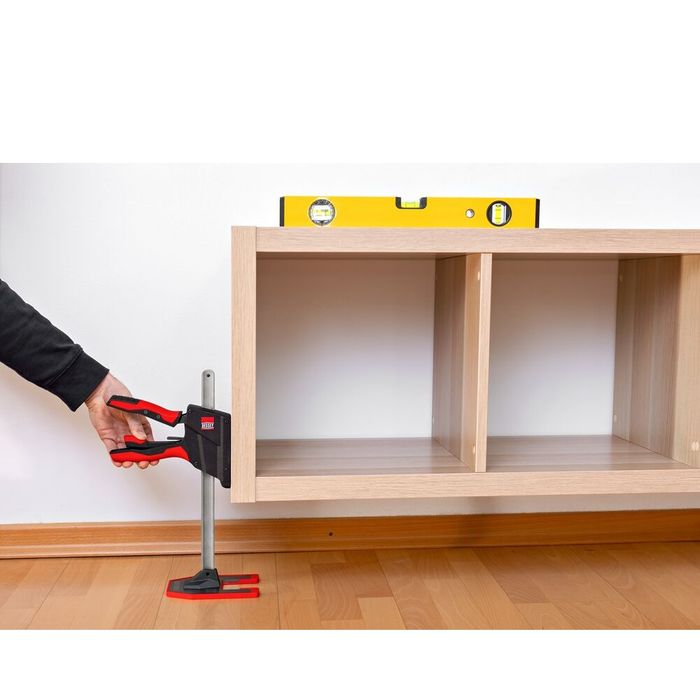

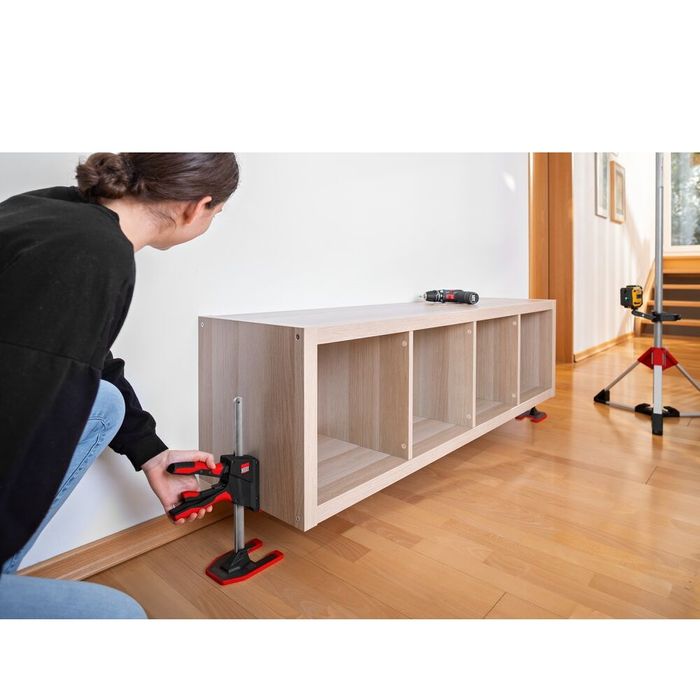

With the BEYCEPS, workpieces can be raised, lowered and aligned gently and with millimeter precision using just one hand. Operation is ergonomic, intuitive and safe:

Thanks to the pump lever made of 2-component plastic placed on the top
due to the separate levers for fine lowering and releasing arranged under the pump lever. This prevents accidental release
Protected and gentle working
When developing the one-handed lifting clamp BEYCEPS, great importance was also attached to protecting the product, user and workpiece. This is evident:

Thanks to the closed plastic housing. This protects the internal mechanics from dust, dirt and chips and prevents fingers from becoming trapped
thanks to the protective caps for the stand and lifting plate included in the scope of delivery. They are easy to attach and prevent damage to workpieces with sensitive surfaces



Lifting force up to 1,800 N / 180 kg / 400 lbs

For lifting (up to 8 mm per operation of the pump lever), lowering (up to 4 mm per operation of the lowering lever) and aligning workpieces with millimeter precision, gently and safely with just one hand

Ergonomic and safe handling, as the pump lever made of 2-component plastic is positioned on the top and the two levers for fine lowering and releasing are arranged separately below it

Closed plastic housing protects the mechanism from dust, dirt and chips and prevents fingers from getting trapped
Can be converted without tools for clamping tasks

Protective caps for stand and lifting plate – included in the scope of delivery – prevent damage to sensitive surfaces
