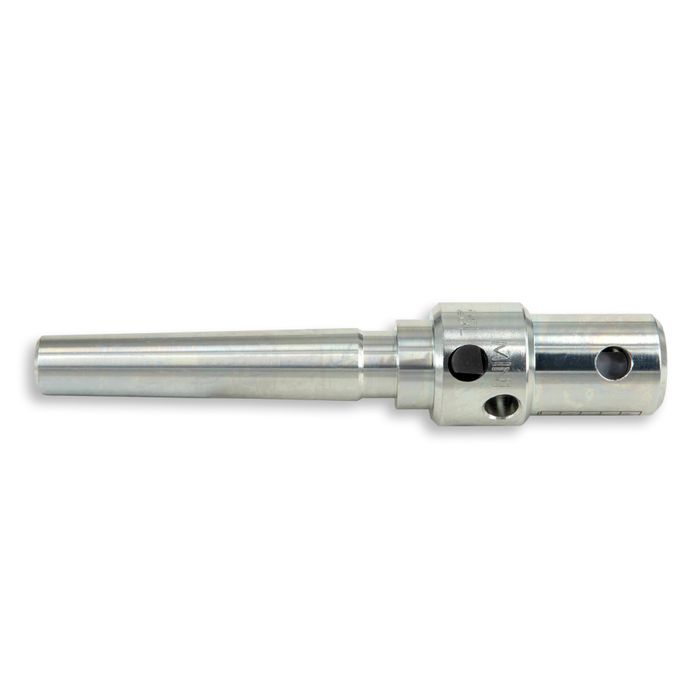

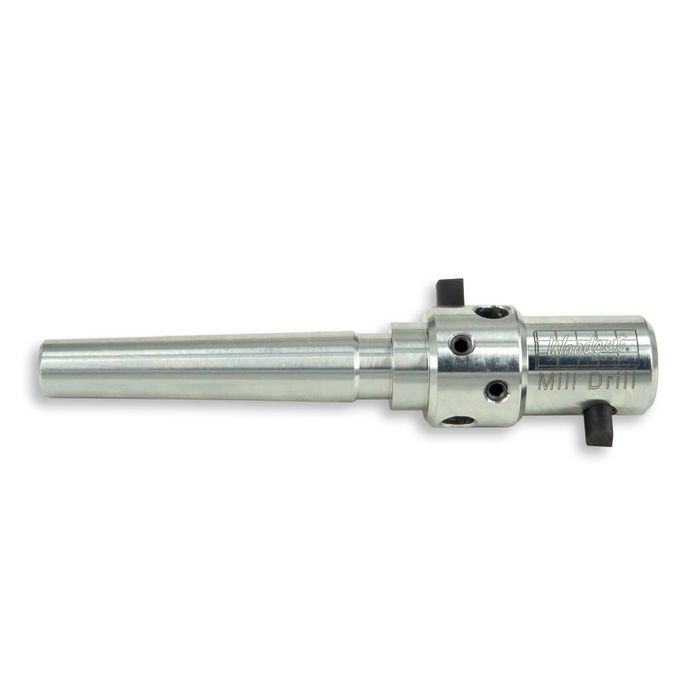

Woodcut Mill Drill Universal - used for CrushGrind

Stock Code:
WDC-MD
Price:
$149.00 inc GST

Description

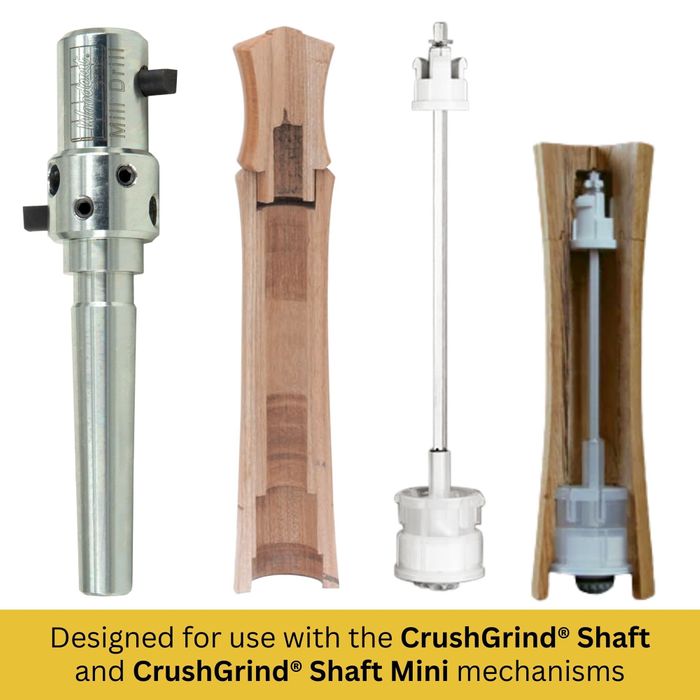

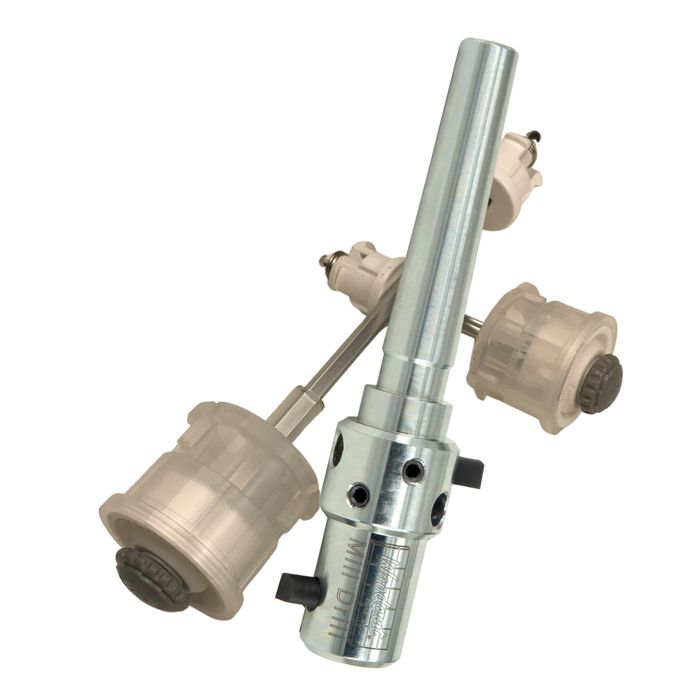

The Woodcut MillDrill™ was designed to make the production of pepper grinders that utilise the CrushGrind® Shaft or CrushGrind® Mini Shaft mechanism, easier and quicker.

EASY TO USE - Simple design to speed up your production of peppermills. Specifically designed for, but not limited to, using the CrushGrind® mechanisms.

ONLY TOOL NEEDED FOR DRILLING - A versatile tool which incorporates a No 2 Morse Taper so it will fit into the tail stock of most lathes. With some adjustment to the cutters it can be used to cut a wide range of hole sizes making it unnecessary to buy a number of drill bits. Can be used to hold Forstner drill bits with a 10mm (0.39") shank.

DESIGNED BY TURNERS, FOR TURNERS - Australian turner Brendan Stemp had the idea of making the process simpler and faster to produce Peppermills. Frustrated with the complexity of using multiple drill bits, Brendan’s idea to develop a product was inspired from observing the process of a Mill Drill press and adding two cutters.

PRE-SHARPENED - ready for immediate use but will need to be sharpened again when the cutters become dull or blunt. How regularly you sharpen the cutters will depend on the timber being used. Regular touch-ups can be done with a diamond lap stone.

HOW TO USE - A 25mm (1") hole is drilled in the pepper mill blank and then the Mill Drill is used to enlarge the hole and cut a step for the mechanism. It drills the two different diameter holes, to the correct diameter and distance apart so the mechanism fits exactly; a 38mm (1 1/2") diameter hole for the body of the mechanism and, finally a larger 42mm (1 3/4") hole which allows the mechanism to rest against a shoulder at a depth from the base of the mill of your choice, giving ample clearance for access to the knurled knob at the base of the CrushGrind mechanism.

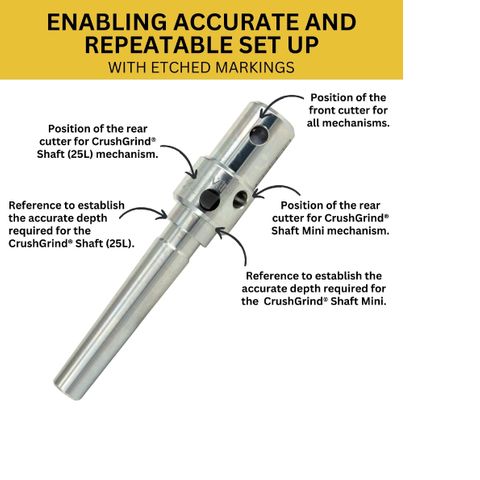

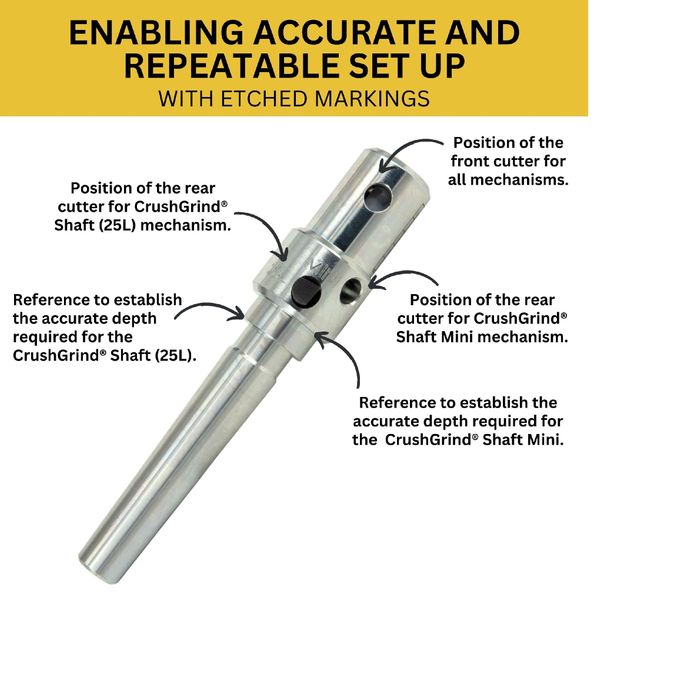

INCLUDES - An Allen key is supplied and with either a set of Vernier callipers or an accurate rule, the cutters can be set to the correct orientation and distances required.
Also includes an extensive user guide booklet is included in the box with your Mill Drill Universal. User guide and demonstration videos available on You Tube.
