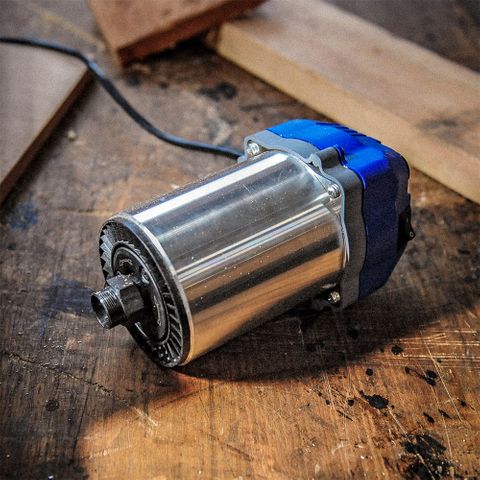

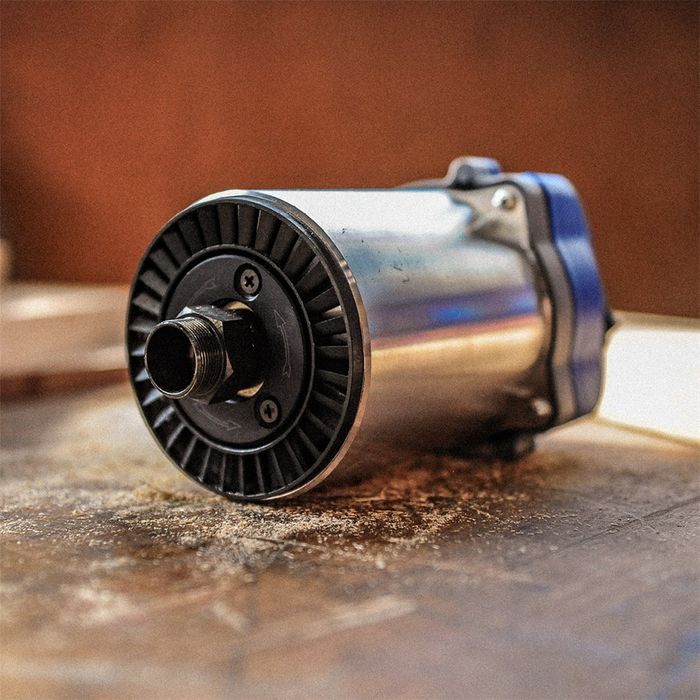

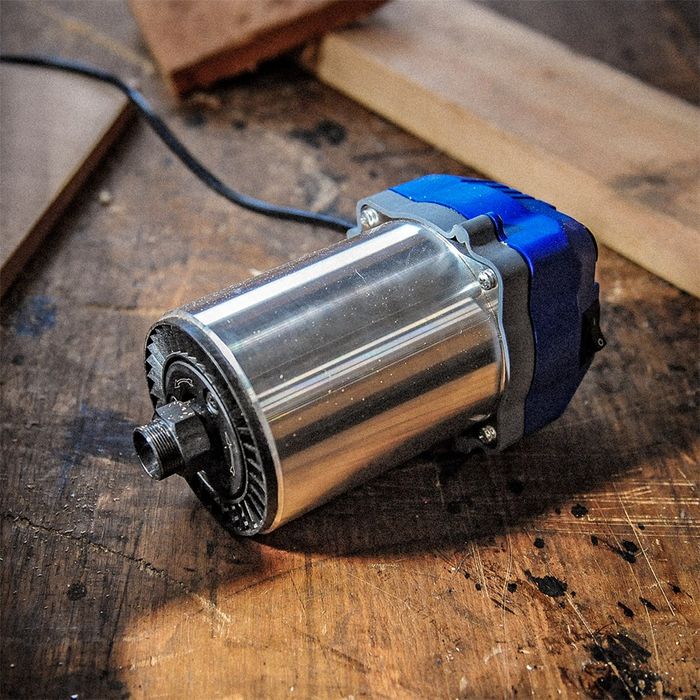

Carbatec 2400W Router Power Unit

Stock Code:
RT-RPU2400
Price:
$649.00 inc GST

Description

NOT FOR HANDHELD USE

Tackle a variety of jobs with ease!

Router Tables are more and more the ‘go to’ machine in many woodworking workshops.

High-powered and cumbersome spindle moulders are being phased out (or only used in industrial applications), replaced by the far more versatile (and somewhat safer) router table.

Better guarding, better speed range and infinitely upgradable.

The issues have been choosing a suitable plunge router to power your router table and then deciding if you should permanently mount it, or remove it for hand-held use.

Routers are predominantly used to cut patterns, grooves and slots, create decorative edging and joinery. The use of different router bits will enable different cutting techniques and functionality. Start table routing, and you won’t look back!

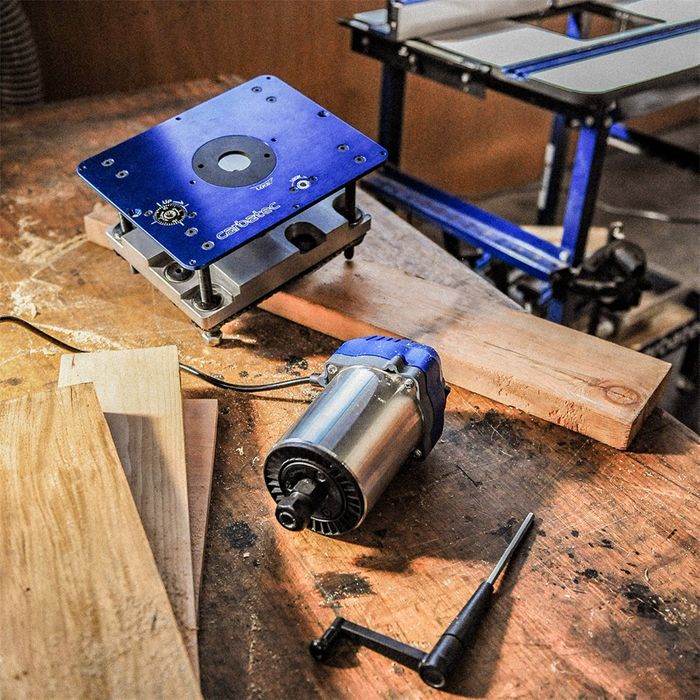

The Carbatec Router Power Unit is designed specifically to suit the Carbatec Fixed Base Router Lift, and drop into any of our Carbatec Router Tables, Kreg Router Tables (with some minor tweaking), and many other router tables with a 297 x 234mm opening.

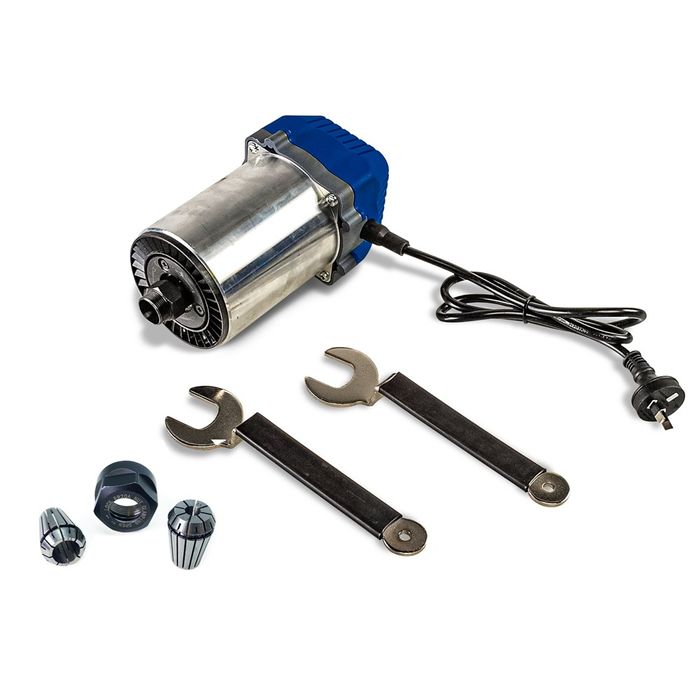

Carbatec’s Router Power Unit features a sturdy aluminium housing with its powerful 2,400W (3 ¼ HP) 10A Motor and Variable Speed Control that adjusts from 10,000 – 22,000 RPM, making it suitable for a wide variety of jobs large and small. The included ¼” and ½” auto releasing and removable ER20 collet inserts ensure that you aren’t limited by router bit choice.

The soft-start safety and speed control feature reduces torque at start-up and constant speed under load. Premium sealed shaft bearings extend life whilst delivering minimal bit run-out. Easily install and remove router bits with the included two offset wrenches.

Features:

NOT FOR HANDHELD USE
* 2400W input (1800W output) suitible for all table routing
* Electronic variable speed (10,000-22,000RPM)
* Industry standard, heavy duty 1/4" and 1/2" ER20 collet inserts included
* A dedicated Router Power Unit for your Router Table, set and forget.
* Requires Carbatec RT-LIFT-FB Kreg KR-PRS5000 Router lift, or similar mounting method.

Specifications:

Brand Carbatec
Motor 2400W (3-1/4HP) input / 1800W (2-1/2HP) output - Universal
Diameter 106.7mm (~4-13/64")
Collet Sizes Included 1/4" and 1/2" ER20 inserts with single collet nut
Variable Speed Yes (10,000 - 22,000 RPM)
Warranty Period 12 Months
