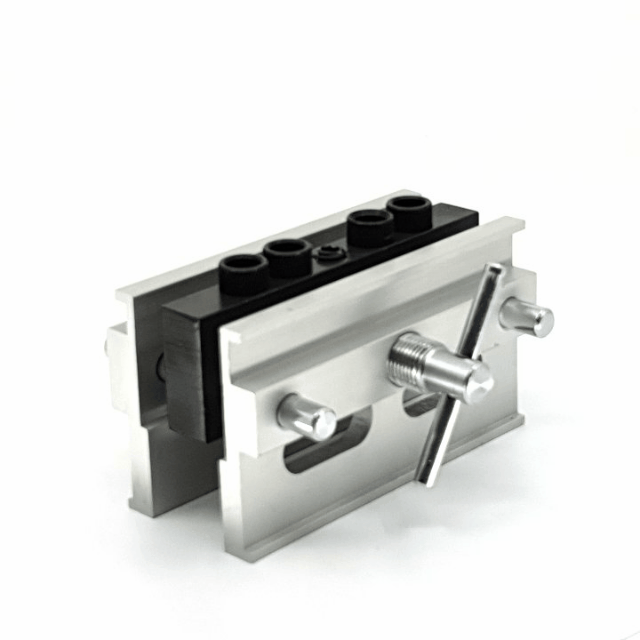

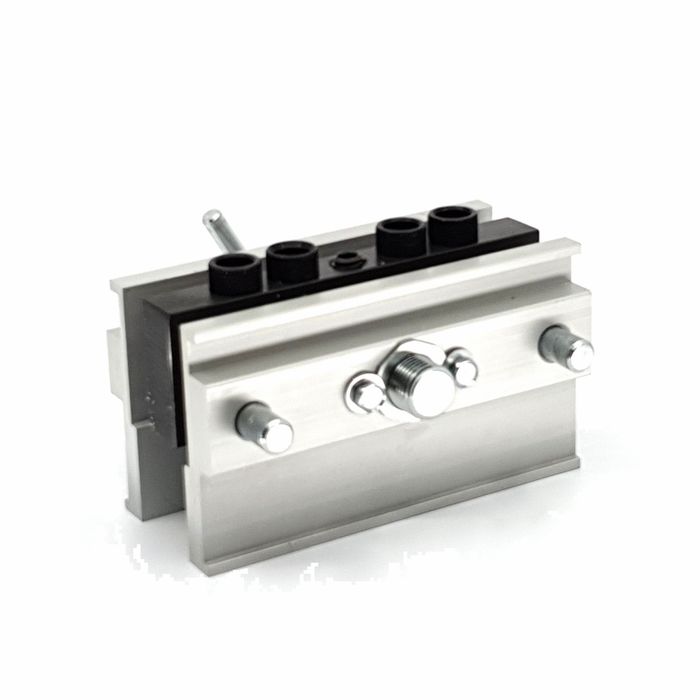

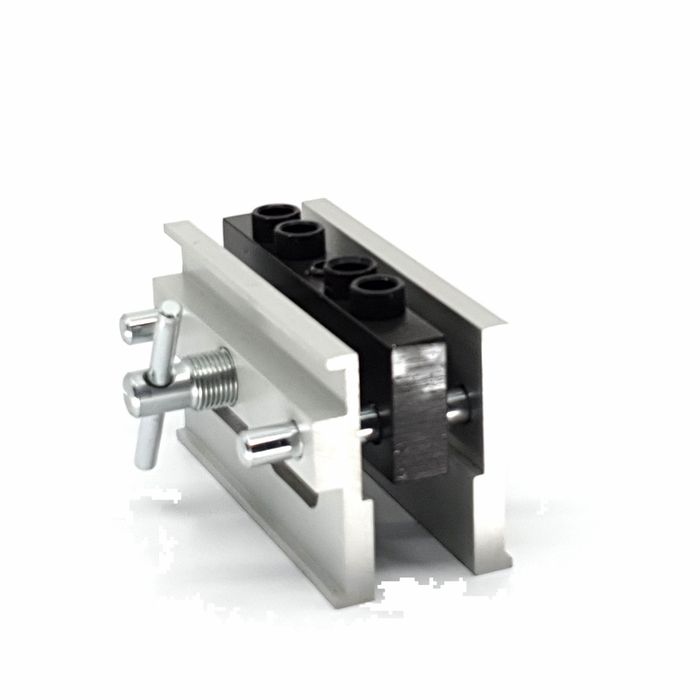

Self Centering Dowelling Jig Metric

Stock Code:
DJ-1MX
Price:
$119.00 inc GST

Description

This new improved model features the same self centering clamp system as the DJ-1M, but now has more choices for you. Each jig comes with 4 each of the 6mm, 8mm and 10mm drill guides, and 4 threaded holes (where the previous unit only had 2). This allows you to drill wider spaced, and more holes, without having to reposition the jig.

Designed for face frames or other butt/end/side grain join applications.
This design has removable bushings that allow you to drill up to 4 holes of the same size without moving the jig.
Hole spacing allows pairs of holes to be drilled at 19, 35, 52 & 70mm centres.
Included bushings and centre section are made of hardened drill steel.
Replacement drill guides bushings are available, and we carry a range of Haron drills and dowels to suit.

Set Includes;
* Self Centering Dowelling Jig
* 4x 6mm Guides
* 4x 8mm Guides
* 4x 10mm Guides

Specifications;
Brand Carbatec
Capacity 10-52mm
Diameter 6-8-10mm
