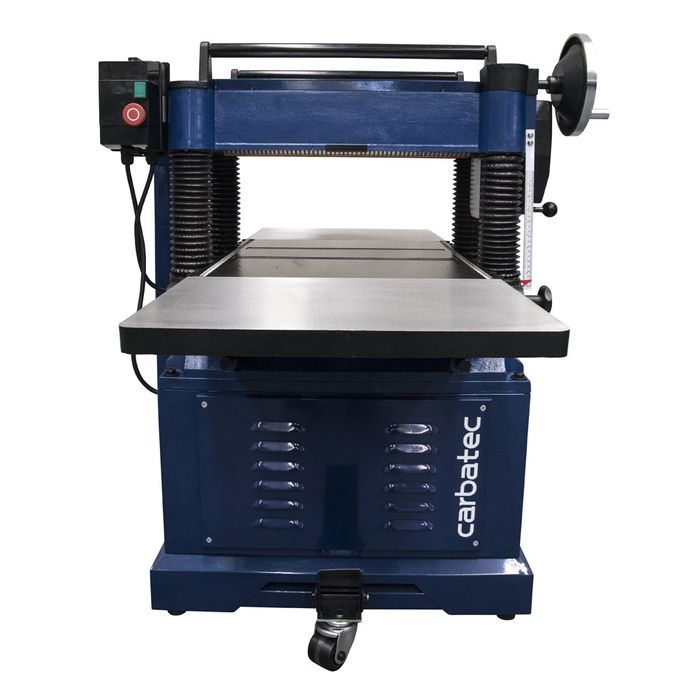

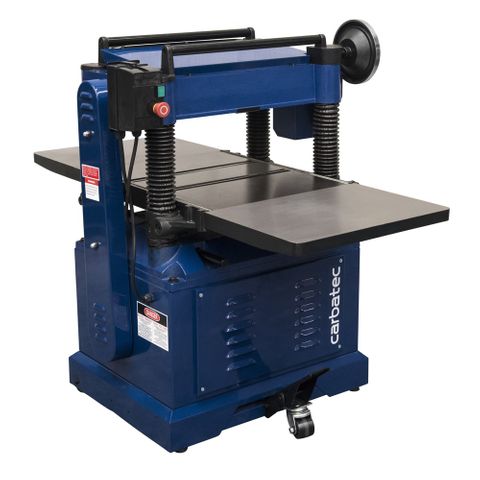

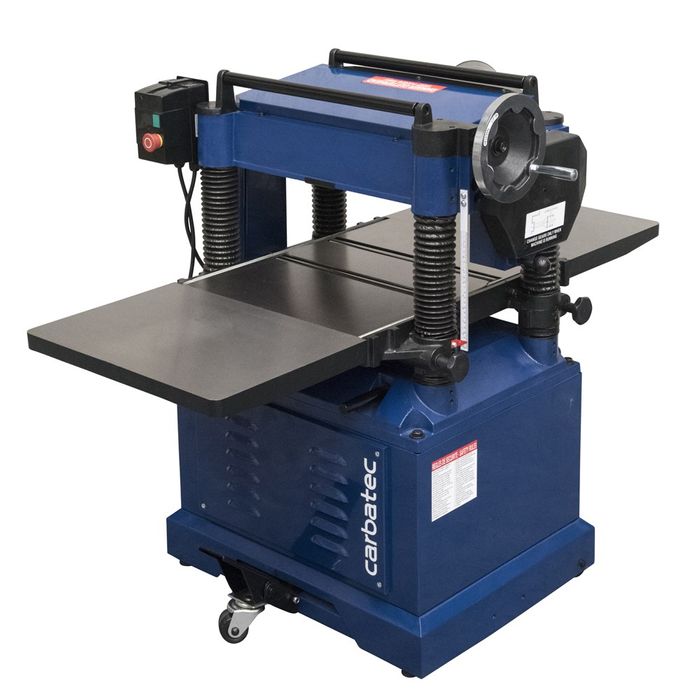

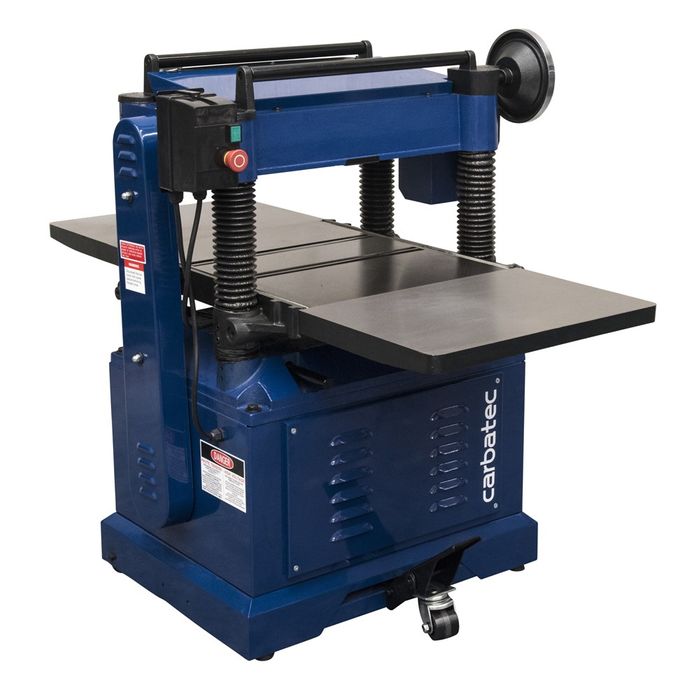

THICKNESSER 20 in. 1ph 240V

Stock Code:
TH-508C
Price:
$5,499.00 inc GST

Description

Description

New look, new code, same great machine! We have updated the look & product code of our CTJ-508-1PH (now TH-508C), however be assured, all specifications of this machine are the same as our beloved CTJ-508-1PH.

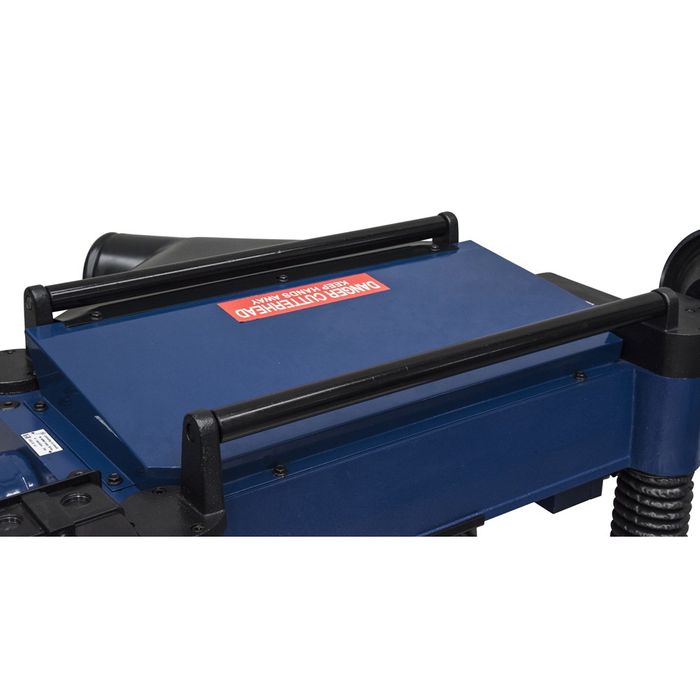

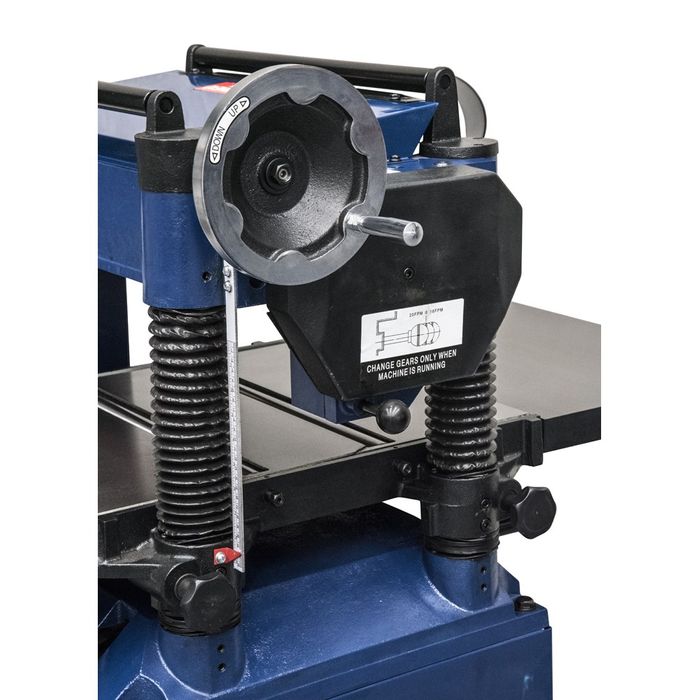

Fitted with cast iron rise and fall table; adjustable bed rollers, cast iron infeed and outfeed tables and an integral mobile base. A front mounted Magnetic Starter NVR switch, 5" rear dust collection port, top mounted return rollers and dust shielded turret guards add to the great value in this machine.

Available in 3hp 230v or 5 hp 415v motor to suit any workshop or industrial setup. Large cutting capacity and heavy castings make this machine a solid performer.

Product Specifications
Brand Carbatec
Cutterhead Straight 4 Knife
Dust Port 125mm (5")
Infeed/Outfeed Roller Serrated / Polyurethane
Max Cutting Width 508mm
Max Depth Of Cut 4mm
Maximum Stock Thickness 210mm
Motor 2.2kW (3.0HP) Induction, 15A plug
Stand Included Or Integral Enclosed Cabinet
Table Material Cast Iron Rise & Fall
Table Size 508mm x 1410mm
Workshop Footprint (WxDxH) 1000mm x 1410mm x 1120mm
Feed Rate 4.8m/min or 6.2m/min
Mininum Stock Thickness 6mm
Shipping Weight 420Kg
Warranty Period 3 Years
Nett Weight 380Kg
