Laguna Revo 12/16 Midi Lathe with Outboard Turning Set, Bed Extension & Stand *

Stock Code:
LGT-REVO-1216
Regular Price:
$5,176.00 inc GST
Price:
$3,999.00 inc GST
Offer Ends 11/09/27

Description

Ex Display unit includes the Revo 12-16 Lathe, Stand, Bed Extension and Outboard Turning set which would normally retail at well over $5000!

This is pick up only

Innovation has been key to the progress of the Laguna brand and it is fully embraced here in the REVO 12/16 Midi Lathe. To overcome the issues of a traditional DC motor (Low torque at low speed and inability to achieve very low speeds) the controller uses the revolutionary Pulse Width Modulation system which feeds a succession of voltage pulses to the motor, monitoring the speed and automatically making adjustments to keep the speed constant. The result is a fantastic level of torque even at the incredibly low speed of 50rpm.

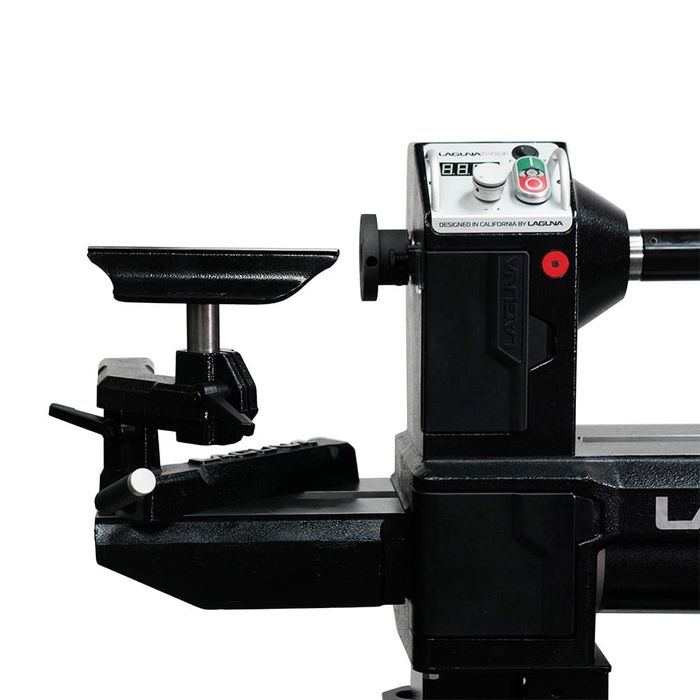

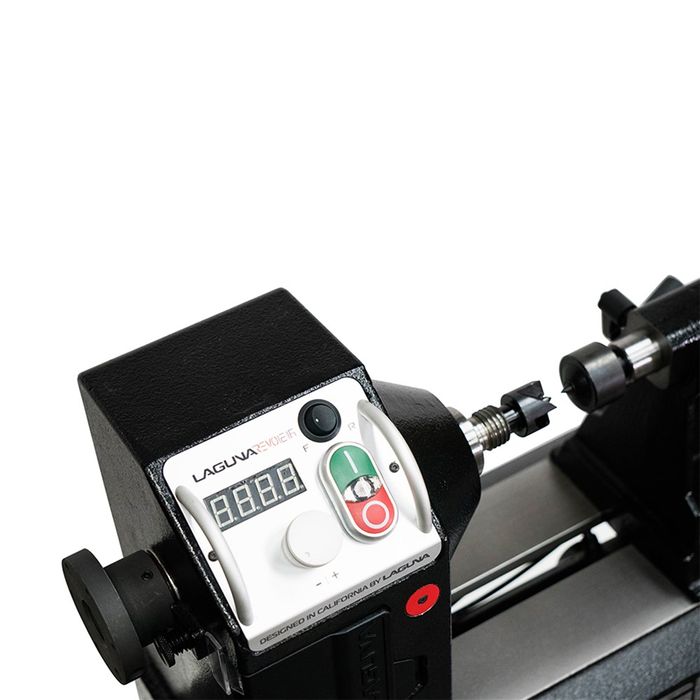

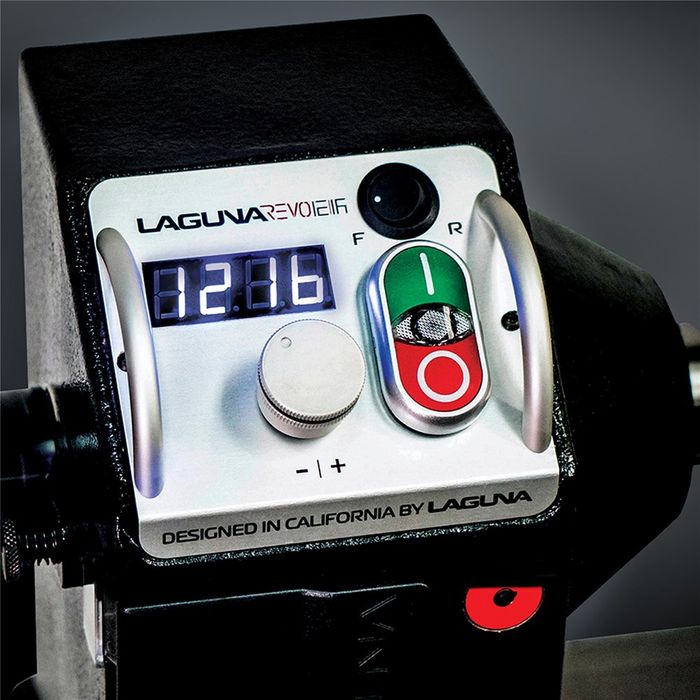

The controls are mounted in an anodized aluminium plate, the ergonomic design of which is well positioned with a clear blue light digital speed read out and easy access to all controls. The variable speed is smoothly controlled with a tactile rubber augmented knurled aluminium dial - it is a joy to use.

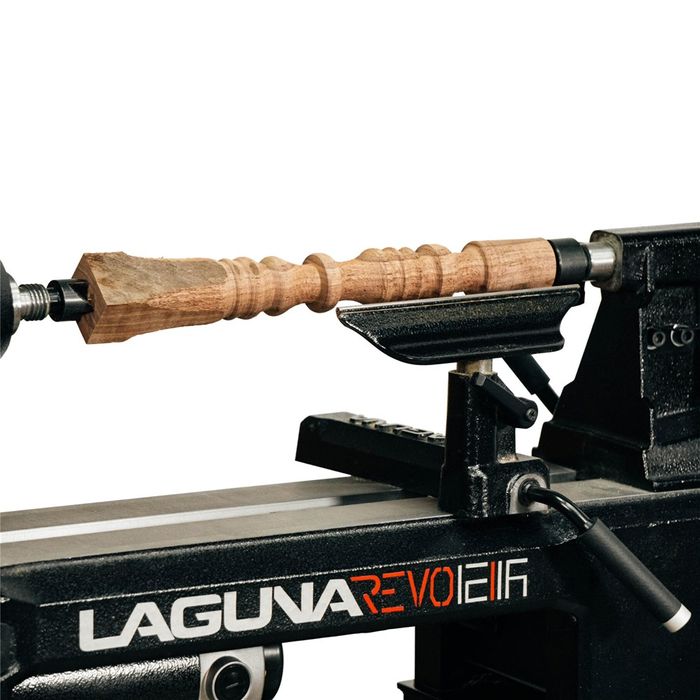

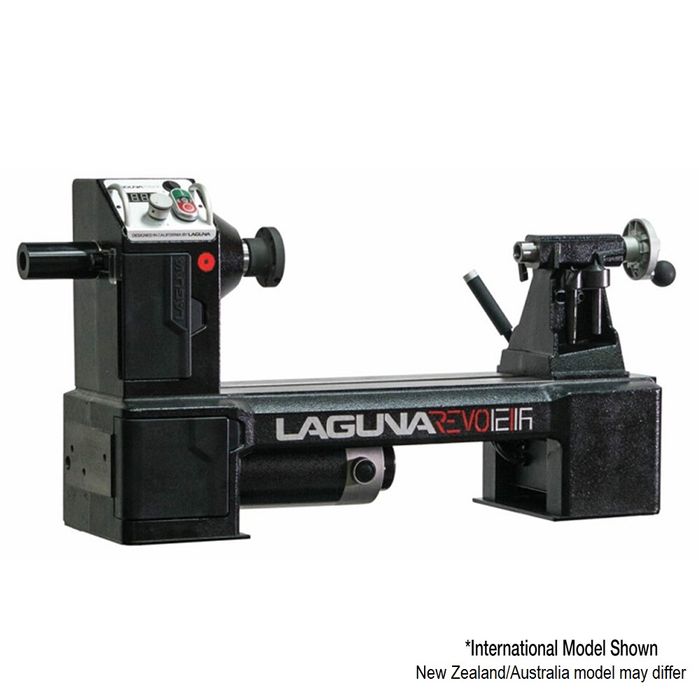

This is an over-size midi lathe! The bulk of the machine, along with the quality Taiwanese manufacture provide a flawless, vibration free turning experience. The 1HP PWM motor is larger than others and provides all the power required for the jobs you might tackle on this lathe. With a 310mm (12.5") Swing over the bed and 390mm (15.5") between centres, this midi-lathe will cover a large variety of projects, particularly the popular hobby craft offering, such as pens, pepper mills, bowls and more.

The bed extension will increase your "between centre" capacity from 390mm to 640mm (25") should you need to turn long spindles.

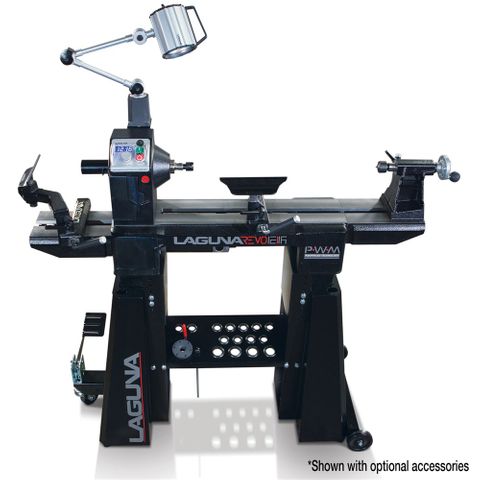

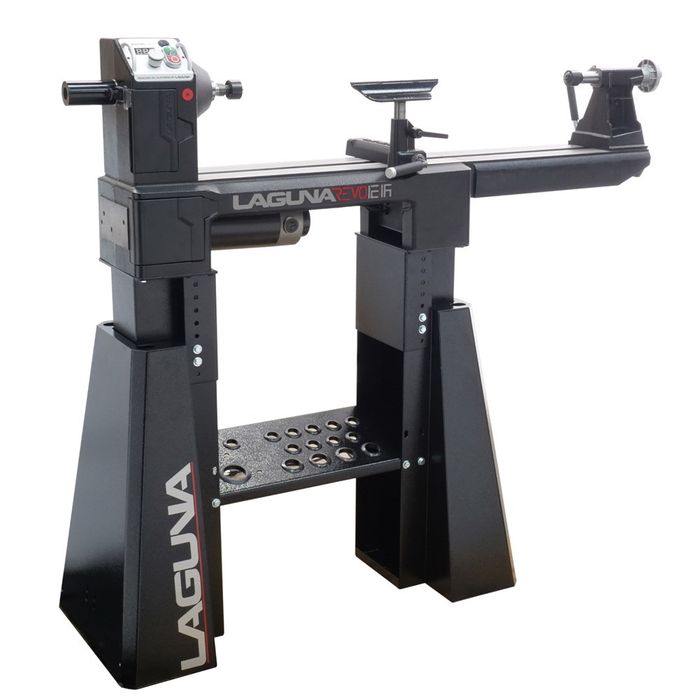

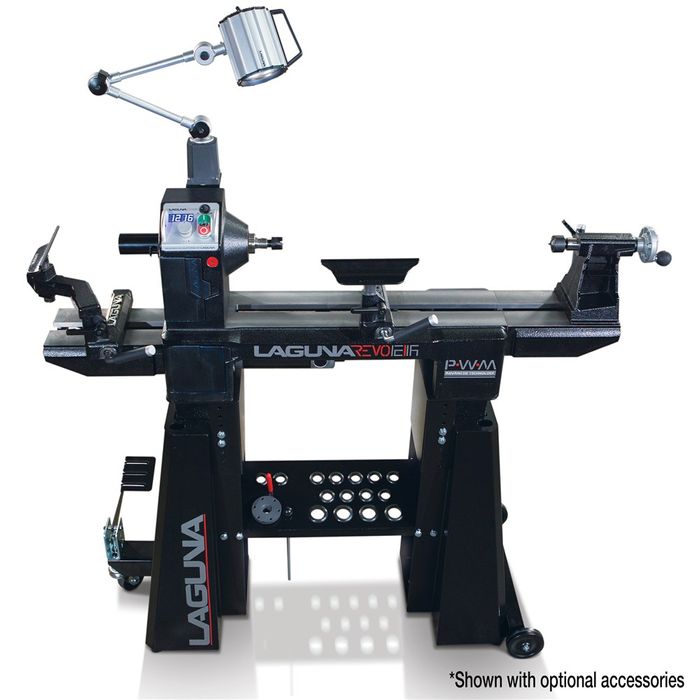

Also included is the stand, custom designed and robust. The height is adjustable from 975mm to 1125mm (39" to 45") at spindle centre and includes multi-tool shelving on-board.

For work on larger bowls and platters the outboard turning attachment (drop down cast iron bed), complete with banjo extension is included to increase your bowl capacity to 405mm (16").

Supplied with 2MT four prong drive centre, 2MT revolving tail centre, 6" Wide Tool rest with 1" shank and a 75mm (3") diameter faceplate.

Made in Taiwan

Features;
* Cast iron bed, headstock, tailstock & banjo
* Luxury soft grip cam action levers
* One step cam handle for fast belt changes
* 24 Position Spindle Indexing
* Spring Loaded Spindle Lock
* Self Ejecting Tail Stock
* Tool rest with hardened steel edge
* Outboard turning option
* Forward and reverse rotation
* Onboard tool & accessory storage
* 1HP PWM (Pulse Width Modulation) DC Motor
* Exceptional torque throughout the 50-3000RPM range
* M30 x 3.5TPI Spindle
* 3/8" (9.5mm) Hole through tailstock.
* *NB: Stand and other accessories available separately!
* **NB: External spindle thread (under handwheel) for outboard turning (with attachment) is 1" x 8TPI. We recommend the Nova Reversible 1 x 8TPI IXNS insert to suit.

Specifications;
Brand Laguna
Warranty 2 Years
Motor 750w (1hp) (DC permanent magnet)
Tool Post Diameter 25.4mm (1")
Gross Weight 57kg
Hole Through Spindle/Tailstock 9.5mm (3/8")
Indexing Positions 24 Positions with Lock
Morse Taper 2MT Head and Tail
Spindle Thread M30 x 3.5mm (Right Hand)
Swing Over Bed Capacity 310mm (12.5")
Workshop Footprint (WxDxH) 750mm x 226mm x 442mm
Speed Range (RPM) 50-3000 RPM
Variable Speed Pulse Width Modulation (PWM)
Shipping 895mm x 365mm x 510mm
Nett Weight 53Kg
Between Centers 390mm (15.5")
Between Centres with Extension 640mm (25") with accessory
Faceplate 75mm (3") included
Outboard Spindle Thread 1" x 8TPI
Outboard Swing 405mm (16") with accessory
Tool Rest 150mm (6")
