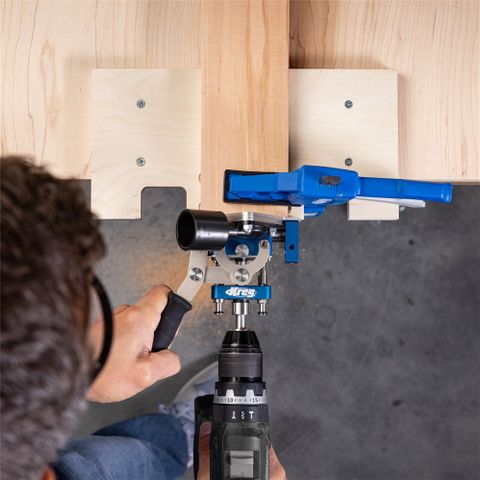

Kreg MortiseMate Loose Tenon Jig

Description

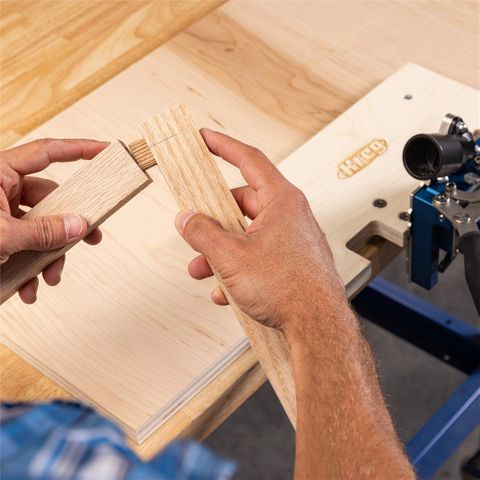

The Kreg® MortiseMate™ Loose Tenon Jig brings a new level of precision and simplicity to wood joinery—without needing a router. Designed for use with a standard drill, it allows you to create strong, accurate loose tenon joints with ease.

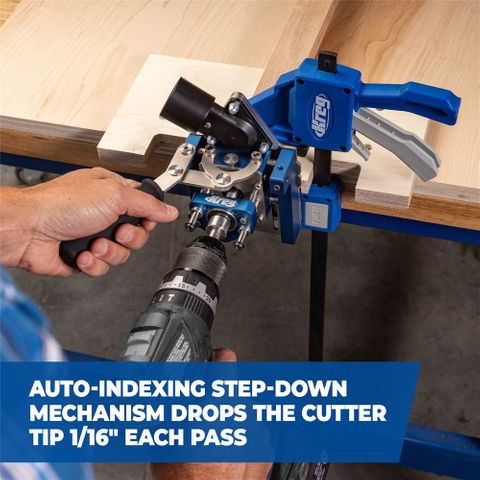

At the heart of the system is an auto-indexing step-down mechanism, which lowers the cutter by 1.6 mm (1/16") per pass—eliminating the need for complex setups or guesswork. Paired with micro adjustment screws, you can fine-tune each mortise for the perfect tenon fit—tight or loose, depending on your project.

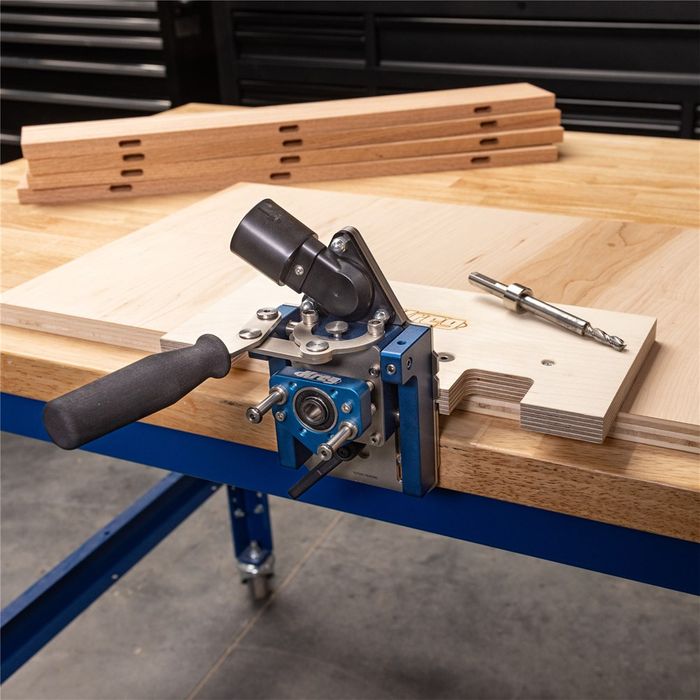

The integrated mini work surface allows for fast, secure clamping using standard trigger-style clamps, whether you're in the workshop or working on-site. Built from precision-machined aluminum and stainless steel, the MortiseMate is engineered for long-term durability and consistent performance.

With support for tenon sizes of 6 mm, 8 mm, and 10 mm, and compatibility with material from 13 mm to 38 mm (1/2" to 1 1/2") thick, MortiseMate gives you everything you need to build solid, professional-grade joints—using just your drill.

Perfect for panels and 90-degree joints this jig simplifies challenging joinery projects including building furniture and cabinetry. It can be used horizontally or vertically.

Compatibility:
* MortiseMate™ Mortising Cutters (6 mm included; 8 mm and 10 mm sold separately)
* Compatible with Festool Domino tenons (6mm x 40mm FE-494939; 8mm x 40mm FE-494940; and 10mm x 50mm FE-494942)
* Works with standard 1 1/4" (32 mm) vacuum hoses for dust collection
* Compatible with most trigger-style clamps
* Precision joinery made simple—with just a drill.

The Kreg® MortiseMate™ Loose Tenon Jig delivers router-quality results through a rugged, easy-to-use drill-powered system—perfect for anyone who demands fast, strong, and accurate joints.

Features:

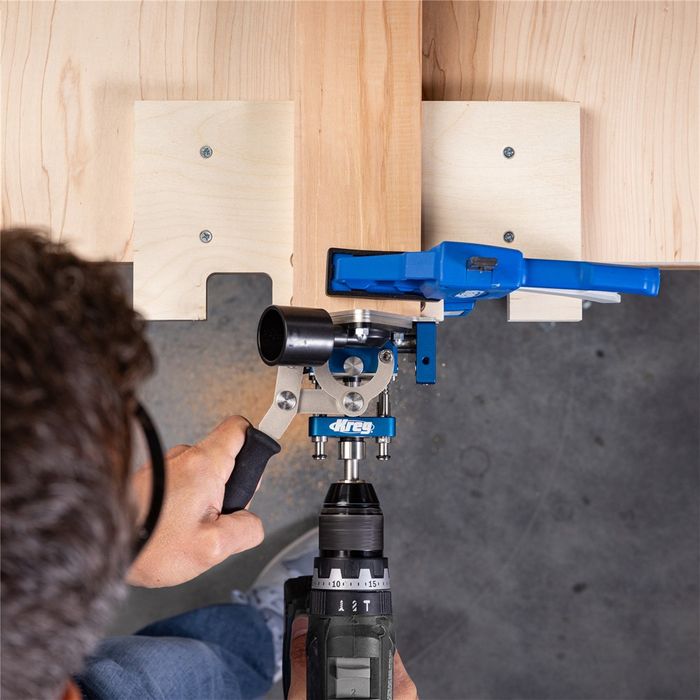

* Cut mortises for loose tenon joinery using a drill—no router required
* Auto-indexing step-down mechanism lowers cutter in 1.6 mm (1/16") increments

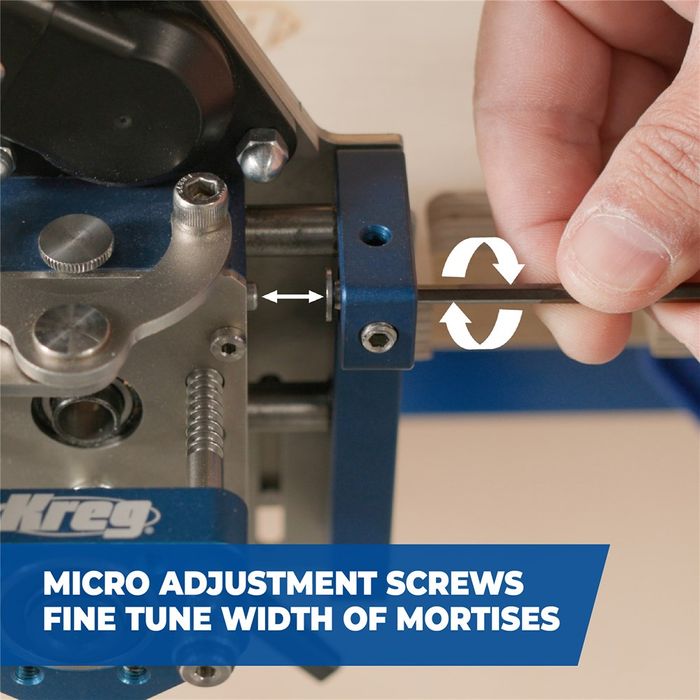

* Micro adjustment screws let you dial in mortise width for custom fit
* Integrated mini work surface enables fast, stable clamping with Quick Action and other clamps (not included)

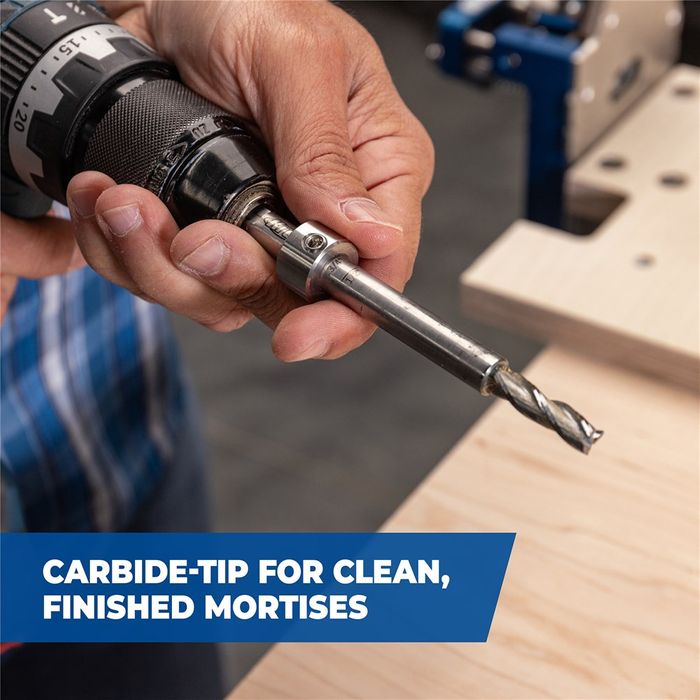

* Laser-etched depth markings on cutter simplify stop collar setup
* Quick and accurate alignment for panel, edge, and 90° joints
* Compatible with tenon thicknesses of 6 mm, 8 mm, and 10 mm
* Cuts mortise depths up to 19 mm (3/4") with 6 mm cutter, and up to 25 mm (1") with 8 mm and 10 mm cutters
* Accepts workpieces from 13 mm to 38 mm (1/2" to 1 1/2") thick
* Includes 6 mm Mortising Cutter (8 mm and 10 mm sold separately)
* Ideal for both fixed workshop setups and portable applications

Inclusions:

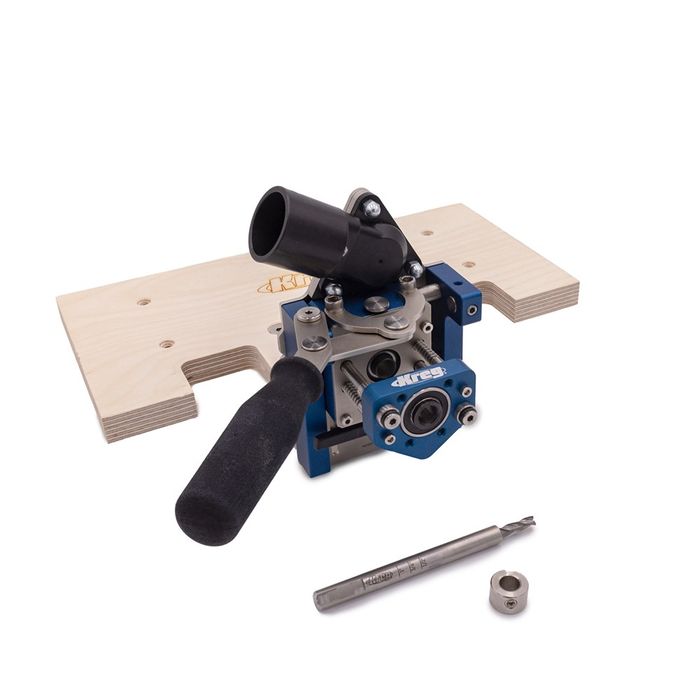

* MortiseMate™ Loose Tenon Jig
* 6 mm Mortising Cutter with stop collar (8 mm and 10 mm sold separately)

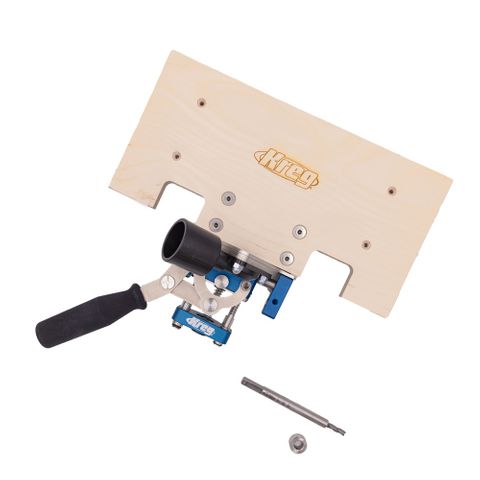

* Mini Work Surface
* Dust Collection Adapter (fits 32 mm (1 1/4") vacuum hoses)
* Hex wrenches: 4 mm (5/32"), 3 mm (1/8"), 4.8 mm (3/16")
* Owner’s Manual
