Magswitch Pro Vertical Featherboard
Description

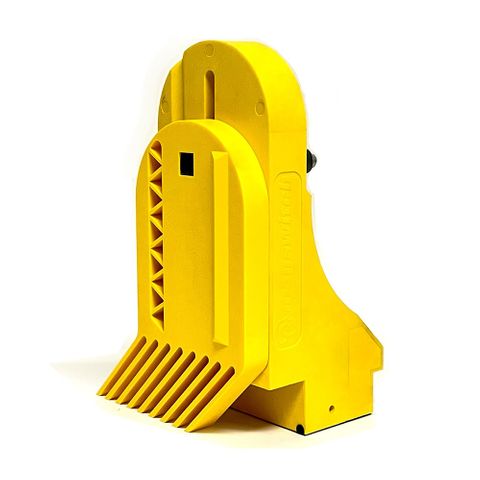

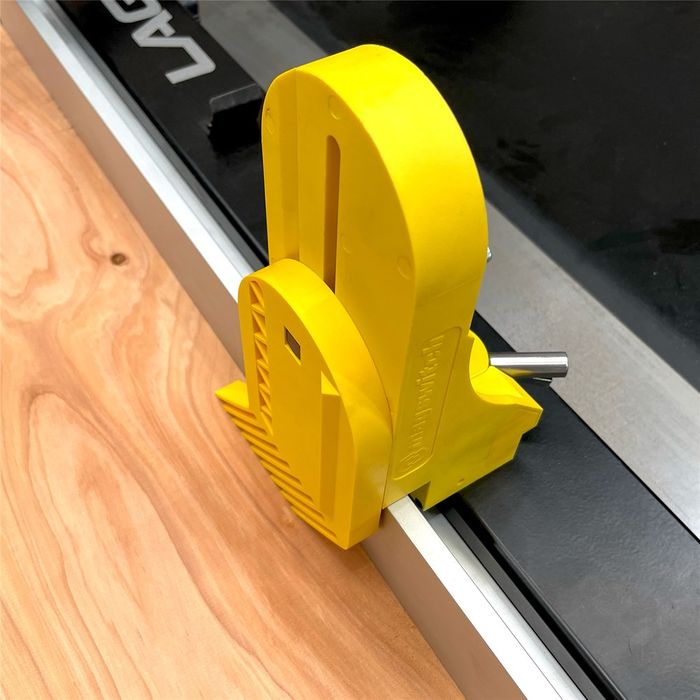

The Pro Vertical Featherboard is a table saw safety attachment which pushes the workpiece down against the table during feeding to prevent ride-up and kickback.

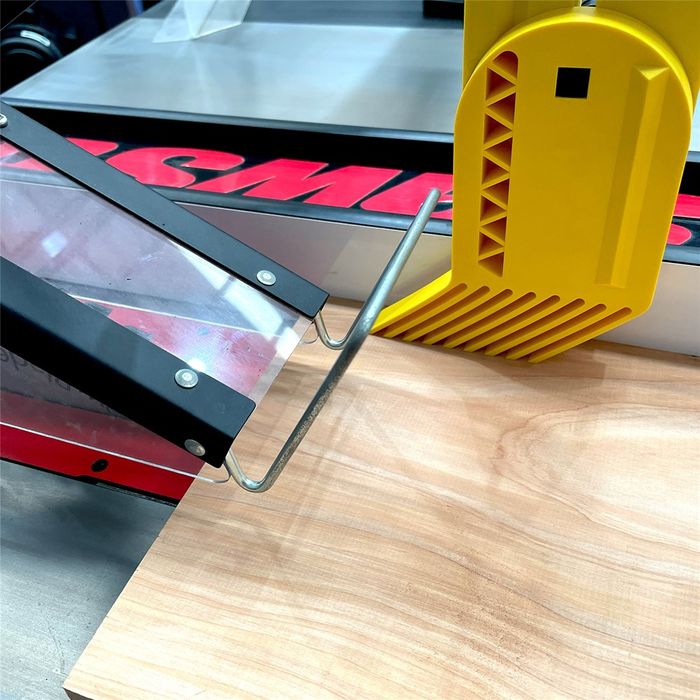

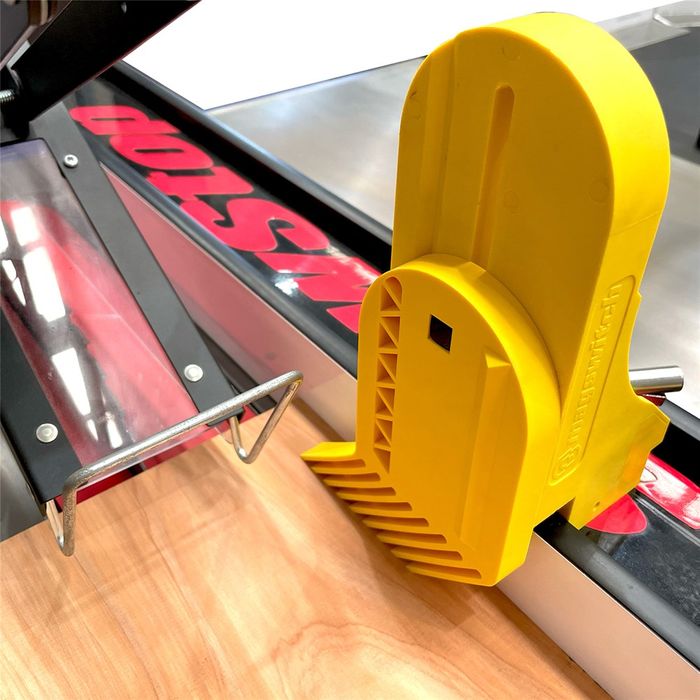

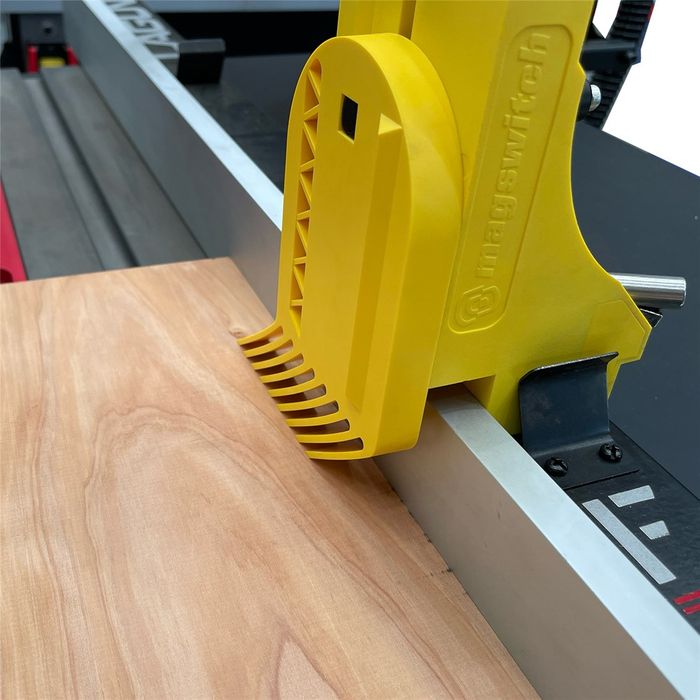

Attach it to ferrous metal "Biesemeyer-style" table saw fences between the low-friction guide faces and adjust the feathers vertically to match the height of the workpiece. It can be paired with a second Pro Vertical featherboard for downward pressure on a work piece before and after the saw blade.
Nominal Max Breakaway Force: 150 lbs/ 68 kg
Nominal Maximum Shear: 40 lbs / 18 kg
Net Weight: 1.4 lbs / 0.63 kg
Footprint: 3.13"x1.95-2.72 wide/ 79.5 mm long x 49.5-69mm wide

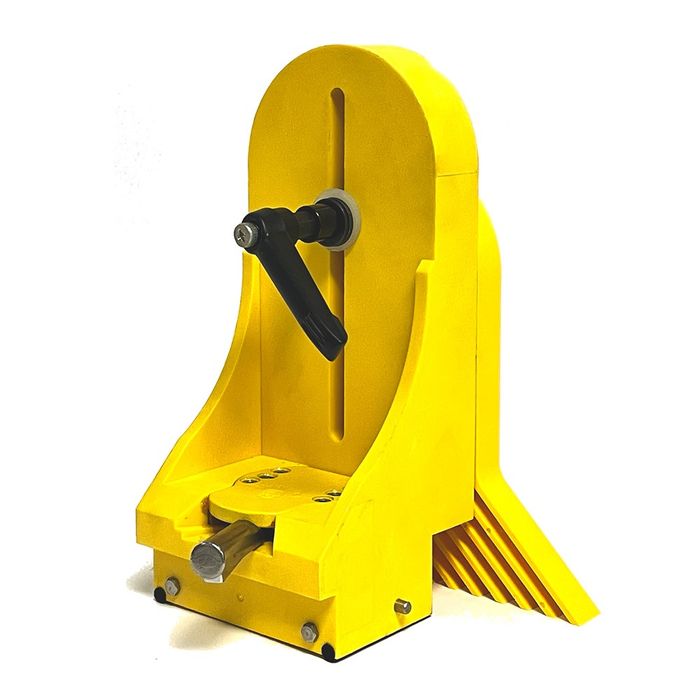

Vertical Adjustment Range: +1.45" to -2.87"/ +37 mm to -73 mm
Features
Anchors to ferrous metal table saw fences to provide downward pressure on work pieces, so material does not bend and lift off the table while machining.
Ensures that non-through cuts are a consistent depth.
Reversible for functionality on either side of the work piece.
Configured to clamp to the center of a steel table saw fence or at any point on the steel table top.
Compressible gaskets provide excellent grip when magnets are engaged.
Broadly compatible with different fence sizes.
Multiple tools interlock together if downward force is needed at multiple points.
Suits many Carbatec, Sawstop and Laguna models.
-
AucklandSorry, not in stock. Please contact us to backorder
-
ChristchurchSorry, not in stock. Please contact us to backorder
