  • Laguna Revo 18/36 and 24/36 Extension System

Laguna Revo 18/36 and 24/36 Extension System

Stock Code:
LGT-REVO-1836-EX
Price:
$1,399.00 inc GST

Description

This 508mm (20") Extension Kit consists of the cast iron bed extension, a solid cast iron tailstock support block for outboard turning and a tool post extension.

The support block raises the tailstock back to the centerline for stability & additional material support when outboard turning. It is supplied with a Tool-Rest Extender to ensure you can achieve the proper height to present your cutting tool to the workpiece. The 508mm (20?) Extension can be mounted in 4 different positions including headstock or tailstock end of the bed as a bed extension, low on the leg for outboard turning, or perpendicular to the headstock for superior tool rest positioning.

A versatile and robust expansion set to suit either the Revo 18/36 or Revo 24/36 lathes!

Maximum outboard turning diameter with expansion set:

– Revo 18|36 – 812mm (32?)

– Revo 24|36 – 965mm (38?)

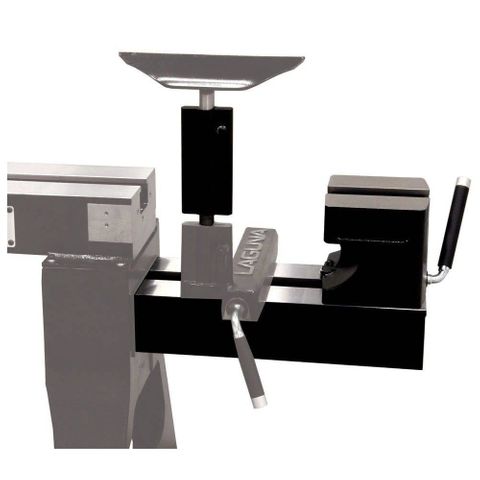

*NB: Shown "in-situ" for illustrative purposes only; Lathe etc not included.

Specifications;

  • Auckland
    Limited Stock
  • Christchurch
    Sorry, not in stock. Please contact us to backorder
