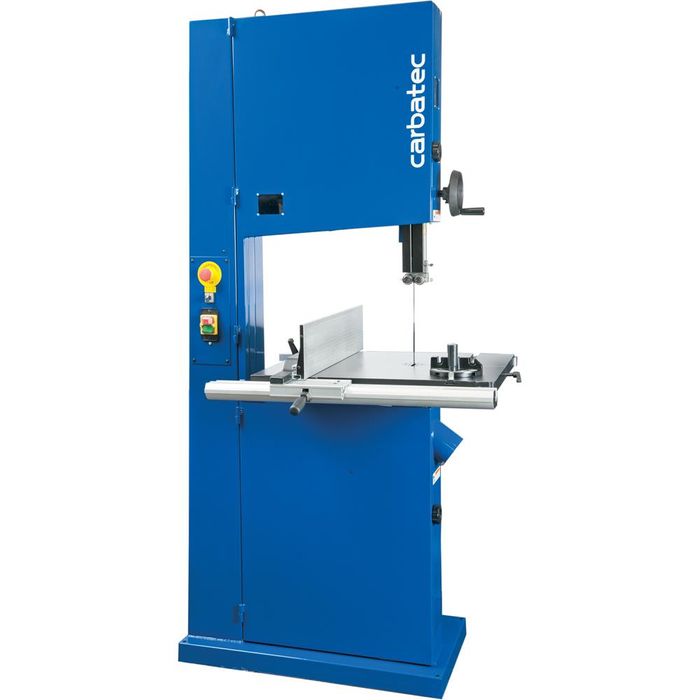

Carbatec 21" (530mm) Heavy Duty - 3HP Bandsaw
Description
Whether cutting turning blanks, children's toys, slicing veneers or anything in between, Carbatec's new 21" Capacity bandsaw has the features and power to do it.

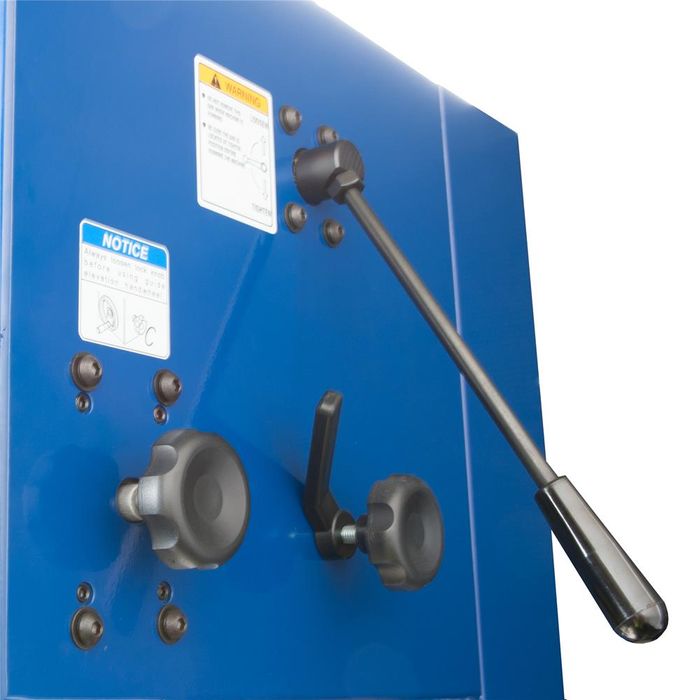

It has been designed from the bottom up from the beefy 3HP motor, the large table adjustment handles which are conveniently positioned so not to knock is pinch fingers or hands when making table changes.
There are two 100mm dust ports located for efficient dust extraction, and have grills fitted to prevent accidental injury, couple this with a lower compartment for tool and blade storage. Two viewing windows make blade tracking and tensioning possible while the machine is running, the door micro switching prevents the motor from being switched on while the doors are opened, so the windows allow adjustments not previously possible.
The blade guides are double roller bearings providing maximum support to the blade, with the rear thrust bearing featuring a slot, further offering stability for the blade. These blade guides have tool free adjustment.
So whether placed into a workshop environment where it will be used all day every day by a variety of staff, or the backyard shed and someone who will use it on weekends, this bandsaw may be small in size, but will surprise with what it can do.
Features and Benefits
* Powerful 3HP motor
* Automatic electronic braking system to stop the blade quickly
* Micro switched doors prevent starting with doors open
* Solid cast iron wheels for performance
* Extra high cutting capacity - 305mm

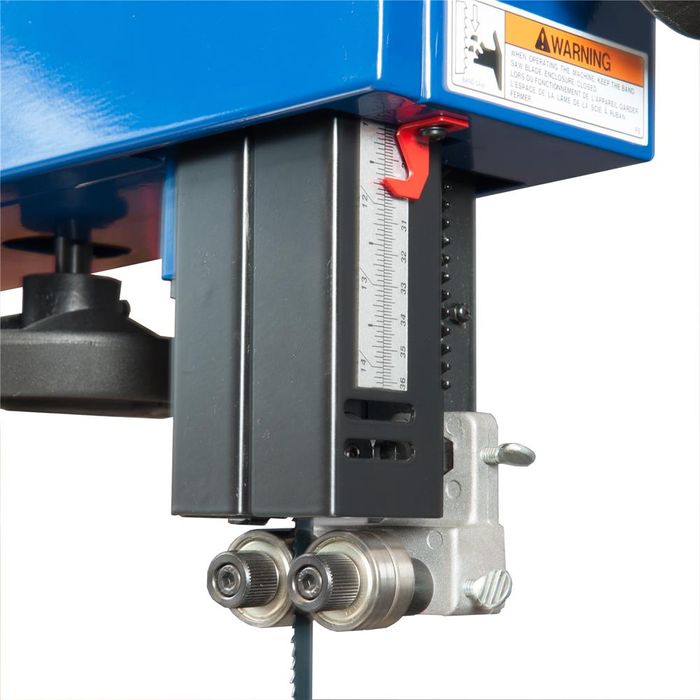

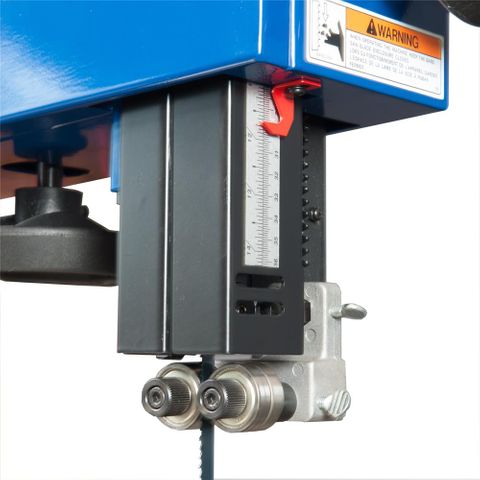

* Double Ball Bearing Guide with Grooved Thrust Bearing
* Twin 100mm Dust Ports
* Two blade speeds for different materials (non-ferrous metals etc)
* Includes one blade: 3/4" x 6TPI (20mm x 6TPI)
* Variety of blades available separately - search BBL-3865
Specifications
Brand Carbatec
Motor 2.2kW (3.0HP) Induction, 15A plug
Switch Type Magnetic NVR
Blade Guard Rack & Pinion Adjust
Blade Guides Double Roller Bearing - Tool Free Adjustment
Blade Length 3865mm
Blade Release Quick Release Lever
Blade Speed 1220 / 580 M/min
Depth of Cut (max) 305mm
Throat Depth 510mm
Dust Port 2 x 100mm
Minimum Blade Width 3.2mm (1/8")
Maximum Blade Width 32mm (1-1/4")
Table Height 955mm
Table Size 685mm x 540mm

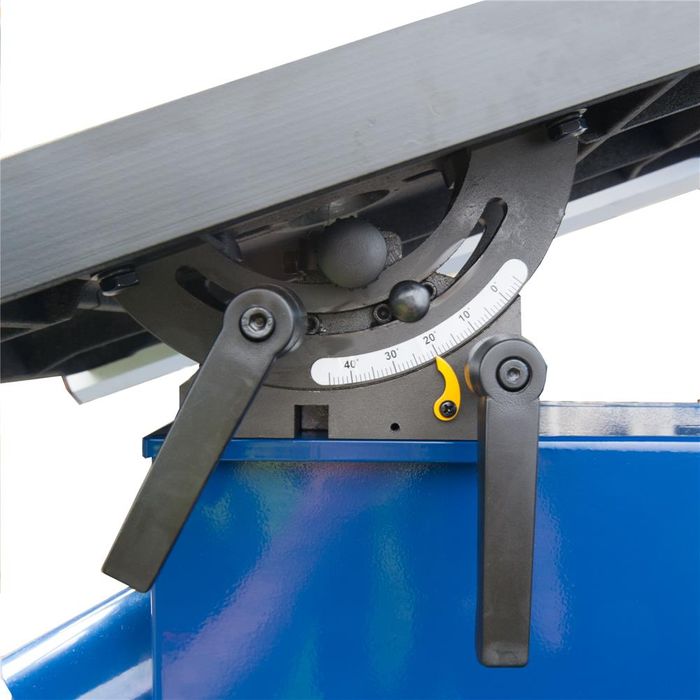

Table Tilt -10° / +45°
Workshop Footprint (WxDxH) 1002mm x 727mm x 1982mm
Wheel Type Cast Iron
Brake System Automatic Electro-Mechanical

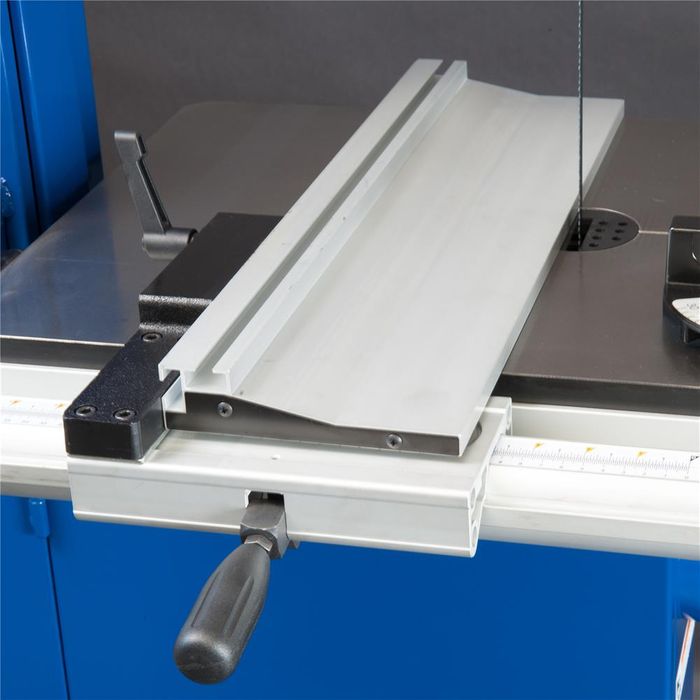

Fence Style High/Low Lever Locking rip
Warranty Period 3 Years
Shipping Weight 200Kg
-
