Carbatec Oscillating Horizontal 150mm Belt Sander

Stock Code:
WBS-2200C
Price:
$2,199.00 inc GST

Description

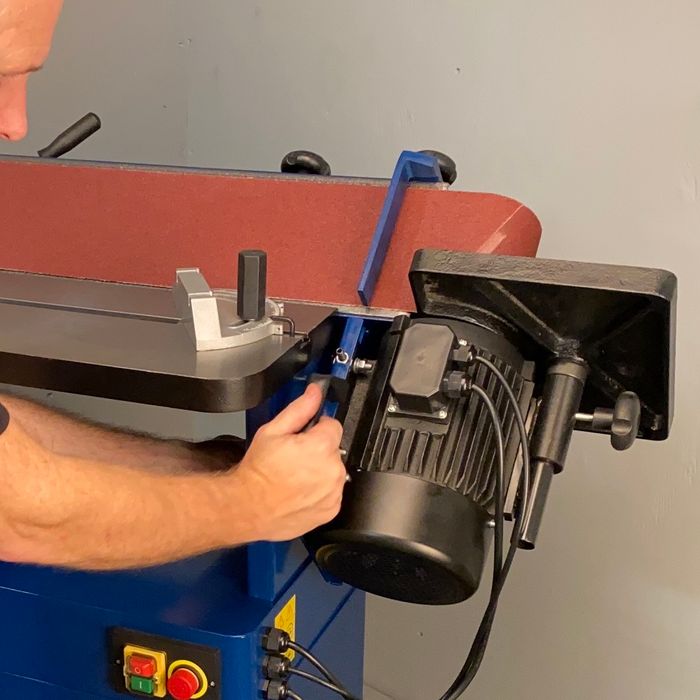

Finish faster with this Big Boy! The Carbatec wide belt 6" (150mm), oscillating wide belt edge sander is just the ticket for production shop , clubs, schools or your home workshop. The belt can be used in the vertical (as shown) or in the horizontal position, against the supplied subfence.
A quick action release under the main cast iron table llows for fast and efficient switching between the two modes. Curved sanding can be completed on the included cast wing, that simply quick connects to the motor end, allowing inside curves to be completed with ease. The 100mm (4") dust port provides excellent dust collection, and provides some good extraction when curve sanding too.
Oscillating Edge Sanders are the best machine for final finishing on wide faces, such as boxes, and tidying up joints etc. A new design NVR (No Volt Release) switch is fitted standard, and also includes a quick action, locking emergency stop switch for your safety. The belt runs over a graphite slip cloth that provides cooler running and longer life for your sandpaper and lightens the load on the motor. The cast iron precision ground tables rise and fall with manual adjustment and provide heft and positive footing along with the sturdy pressed metal base with lockable storage cabinet.

This is our latest version of the BB-80 or BB-80B sander.

Requires a 15A / 230V Circuit,

Features and benefits;
• Oscillating belt for rapid waste removal
• Low friction graphite slip cloth under sanding belt give longer belt life
• Tilting belt from vertical to horizontal
• Height adjustable table
• Mitre Gauge and Horizontal sub fence included
• 100mm (4”) hinged dust port
• Motor- 2200W (3HP) Induction, 15A plug
• Uses standard sized 2260mm x 150mm Sanding belts
• Includes 80G sanding belt
• Key lockable storage cabinet
• NVR & Locking E Stop switch standard

Specifications;
Brand Carbatec
Warranty 3 Years
Motor 2200W (3 HP) Induction - NOTE: 15A Plug
Switch Type Magnetic NVR & Emergency Button Stop
Belt Size 150mm x 2260mm
Dust Port 1 x 100mm (4")
Mitre Gauge Included Yes
Stand Included Or Integral Included
Table Size 750 x 250mm
Workshop Footprint (WxDxH) 1270 x 570 x 1200mm
Tilt Type & Degree Platen Tilting 0-90deg
Shipping Weight 155kg
Nett Weight 140kg

Stock Level:
Available
