CMT Kitchen Jig CMT650

Stock Code:
CMT650
Price:
$529.00 inc GST

Description

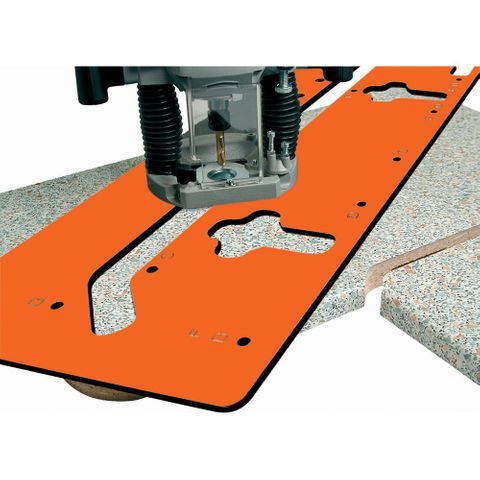

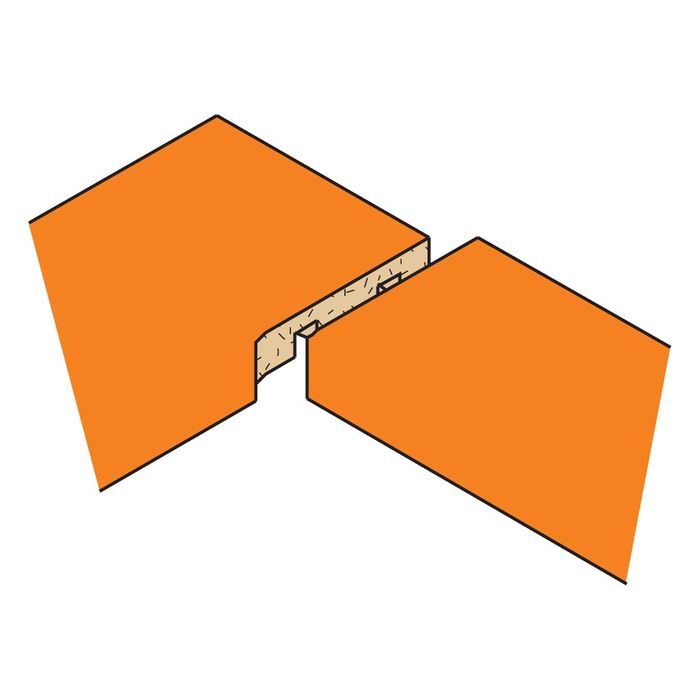

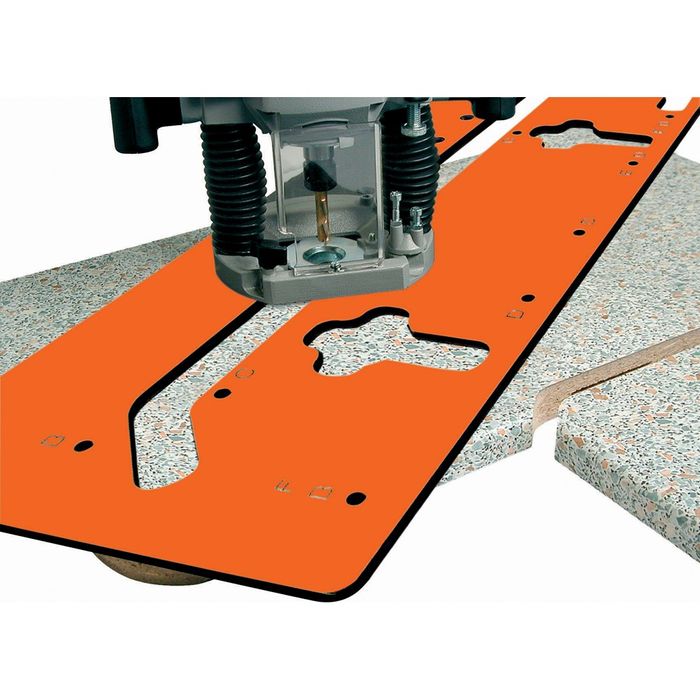

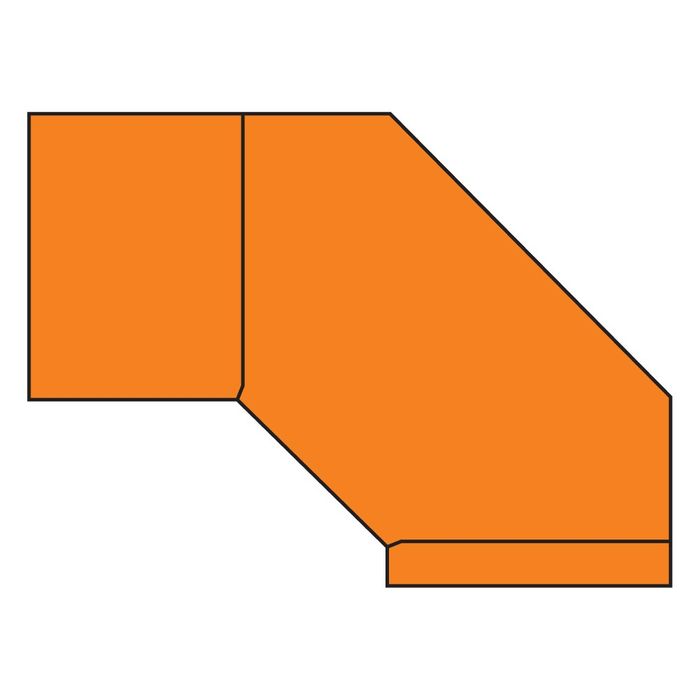

Template jig designed for joining kitchen bench tops at 90 degrees. Made from stable phenolic resin. Template makes rounding over or chamfering edges quick and easy. Template also has facility for routing panel bolt recesses so that hardware can be fitted in minutes. Jig kit includes phenolic template; steel locating bushes; adjustable end depth stop and comprehensive instructions.

For benches 420mm to 650mm in width.

In addition to the jig you will need a portable router; a 30mm OD diameter guide bush (CMT650-BUSH) ; two clamps and a 12mm tungsten carbide tipped straight bit. Does NOT work with a 1/2 inch cutter (12.7mm)

Can be used with either of the two cutters listed below -

CMT straight cutter 812-620-11 (12mm cut with a 1/2 inch Shank) is suitable for tops up to 32mm thick;
CMT replaceable tip cutter 652-621-11 (12mm cut with a 1/2 inch Shank) is suitable for tops up to 50mm thick.
Trend Router bit - TR37X1/2TC (12mm cut with a 1/2 inch Shank) is suitable for tops up to 50mm thick.

Jig weight: 4.3kg.

Jig Includes:

* 1 phenolic template.
* 3 zinc-coated steel location bush.
* 1 adjustable end stop.
* 1 instruction manual.

Jig Requires:

* 1/2” router
* Ø30mm guide bush
* Ø12mm straight bit
* Two clamps to hold the jig from moving.
