Sommerfield Raised Panel Set (1)

Stock Code:
800-521-11
Price:
$729.00 inc GST

Description

CMT Code 800.521.11

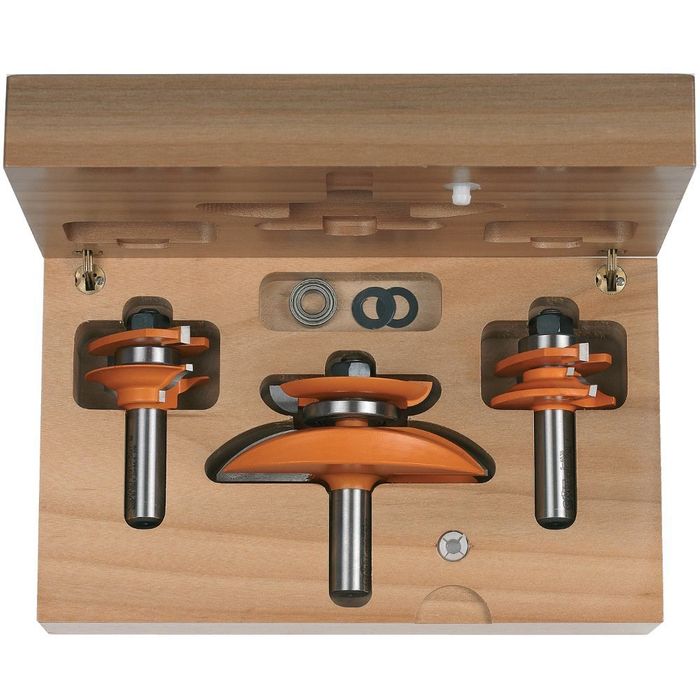

This set of router bits is designed for use in a router table, and provides all of the bits needed to create doors and drawer fronts, the panels to go into these, and the mechanical locking joint for solid timber drawers.

CMT’s junior raised panel sets add intricate detail on a whole new scale! You will make frame and panel details as small as 70mm (1-3/4") square in material as thin as 11mm (7/16").

Delicate panel doors are only the beginning – use these bits with templates to add interesting arches to your work. The sets include a choice of a cove or an ogee raised panel bit and an ogee rail & stile pair.

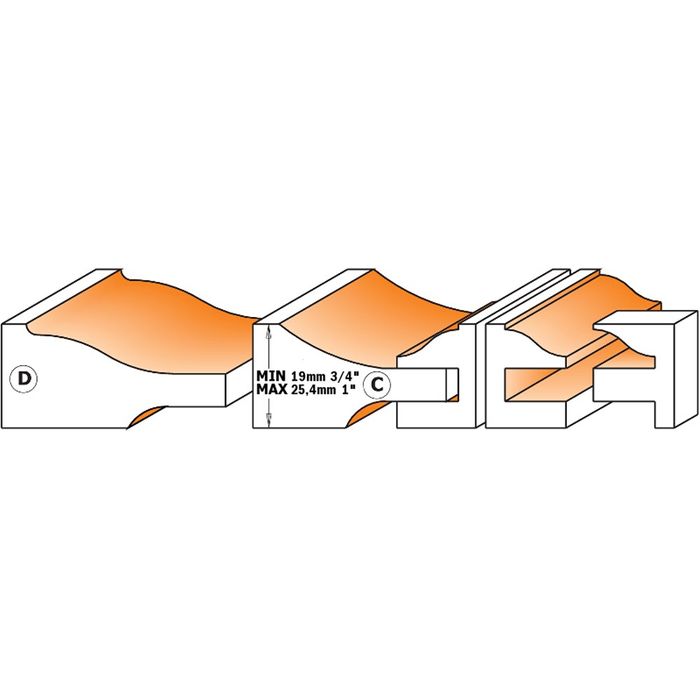

Please refer to the illustrations for complete profile and dimensions.

Tip: When using raised panel bits, rather than moving the router table constantly after each shallow pass, cut several 3mm shims of MDF or similar material to fit against the router table fence. This will limit the amount of material that can be removed in any one pass, and minimise the amount of fence adjustments needed.

Safety tips: the larger bits should be used between 10.000 and 12.000 RPM, three to five passes recommended. To be used with routers with at least 1700W (2-1/4 HP).

Product specification
Brand CMT
Shank Size 1/2"
