Veritas Chisel Plane (Chisel reqd)

Stock Code:
05P21-01
Price:
$149.00 inc GST

Description

Veritas 05P21.01 Chisel Plane

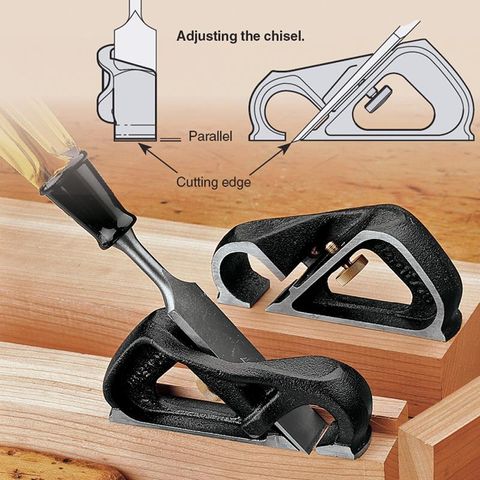

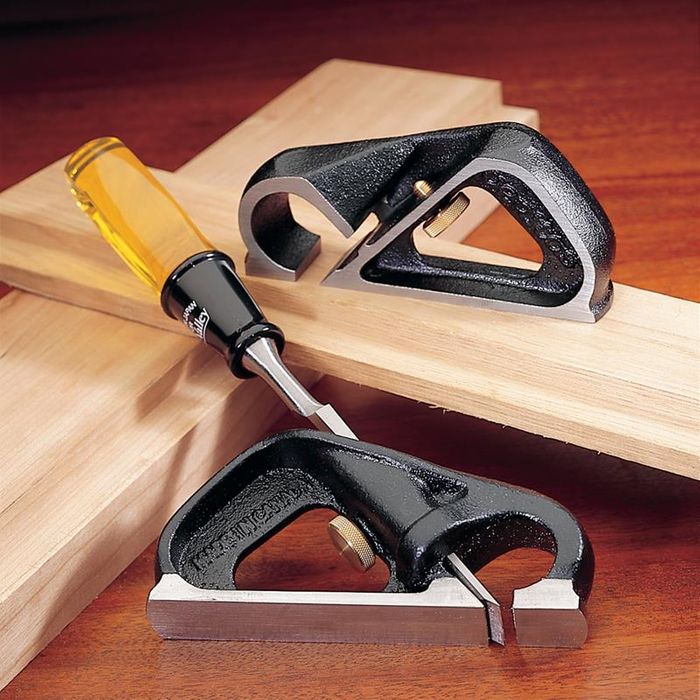

Rabbet planes used to be widely available; but are now being discontinued by manufacturers. Veritas developed this specialized plane to convert a chisel into a rabbet plane.

Chisel not included.

The body is made of ductile cast iron and is configured to hold a 1inch (25mm) bevel-edge chisel at a 45 degrees angle; the same pitch as used on bench planes. It becomes a small plane that works equally well as a shoulder plane or rabbet plane and can be used to clean up machine-cut rabbets and tenons. It works like a butt mortise plane for cutting hinge gains. It will also cut 1inch (25mm) dadoes and grooves up to a depth of 3/8inch (9.5mm). Precisely machined. Overall size is 1-3/8inch (35mm) wide by 5-1/2inch (140mm) long by 2-1/2inch (63mm) high. The clamping screw is made of solid brass. While it excels as a job-site plane; it is equally handy in the shop.

Made in Canada.
