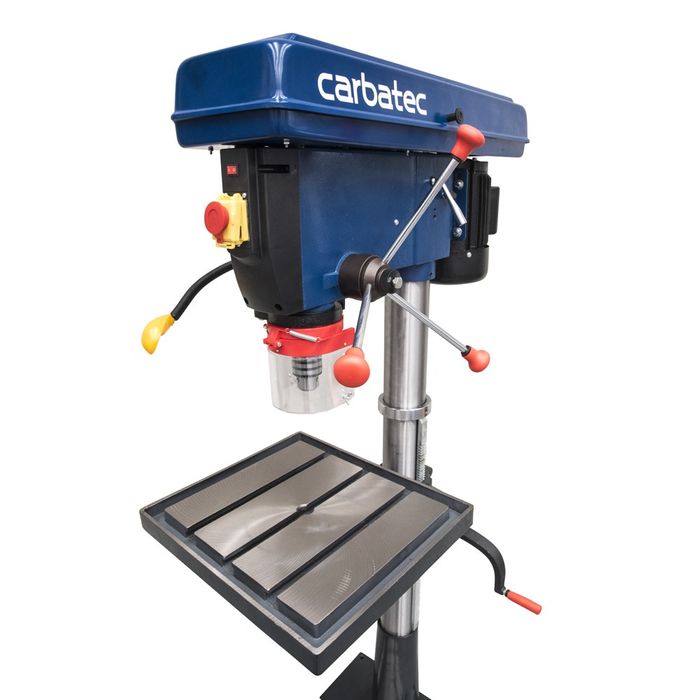

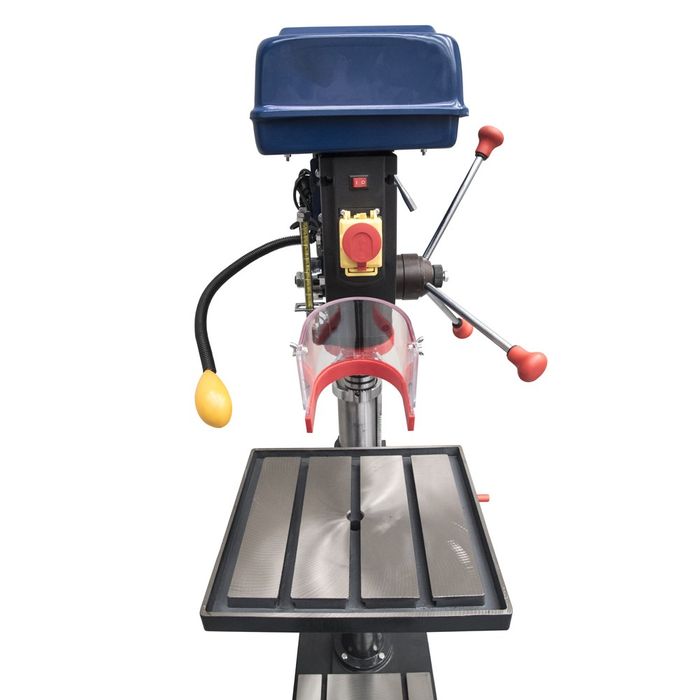

Pedestal Drill Press 12 spd 2hp X-H/duty

Stock Code:
DP-1500C
Price:
$1,429.00 inc GST

Description

Features & Benefits

* 2 HP induction motor
* 12 speeds ranging from 150 to 2700 RPM
* Large cast iron table (470 x 420mm)
* Chuck capacity ranges from 3 to 16mmDescription

Description

We have updated the look & product code of our DP-4132F (now DP-1500C), however be assured, all specifications of this machine are the same as our beloved DP-4132F.

This is the Carbatec heavy duty 12 speed pedestal drill press. It features easy to access opening to access the belts to quickly change to belts to get the appropriate speed for the material being drilled, and light

The large cast iron tilt-able table (470mm x 420mm) with slots cast to attach clamps and accessories. The table has a large wind handle, once the clamp is released, this handle easily winds the table to the best position for the current job. Magnetic jigs and fences are ideal for this table due to the large size and ample areas to position them.

The cast iron base (450mm x 580mm) is appropriately sized for a machine this size, also featuring two slots for clamping. The overall footprint is 620mm wide x 820mm deep.

NVR main switch positioned above the chuck, within easy reach. Just to the right of the switch, on the side of the machine, is the levers to wind the chuck through the 120mm of chuck travel. The chuck has a 3mm to 16mm capacity, with the ability to drill a variety of materials using the speed range of 150 rpm to 2700 rpm.

Product Specifications
Brand Carbatec
Chuck To Base 1110mm
Chuck to Table Max 550mm
Column to Drill Centre 255mm
Drill Chuck Capacity 3 to 16mm
Drilling Capacity 1-1/4" (31.7mm) steel
Morse Taper MT4
Motor 1.5kW (2.0HP) Induction, 10A plug
Stroke 120mm
Table Size 470 x 420mm
Tilt Type & Degree Table, 360°
Work Light Provision Yes
Workshop Footprint (WxDxH) 620mm x 820mm x 1730mm
Shipping Weight 148Kg
Speed Range (RPM) 150 - 2700rpm
Warranty Period 3 Years
Nett Weight 138Kg
