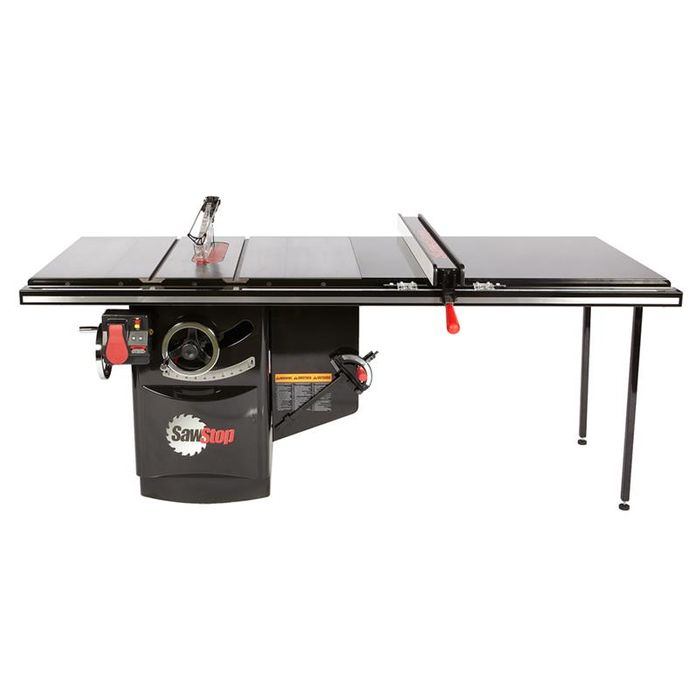

SawStop Industrial 3HP Cabinet Saw and 52 in T-Glide Rail
Features & Benefits
* Thicker, deeper cast-iron table and wings
* Industrial mobile base option
* Cabinet base, industrial weight cabinet-mounted trunnion, interior motor
* Superior design and construction
* Safest tablesaw in the world
The Industrial Cabinet Saw is engineered for heavy duty cycle environments. It comprises a thicker cast iron table for added stability and precision as well as thicker gauge steel in the cabinet, rails, tube and fence, compared to the Contractor and Professional models.
It also has larger hand wheels for easy adjustment and two large access doors for quick access and maintenence are also some additional features.
SawStop is known for the brake mechanism and preventing life changing injuries. However this is not where the research and development has stopped, all models have been designed "for woodworkers by woodworkers". This means an engineer has not under engineered something to reduce weight or cost.
You will see the quality when you assemble your new saw, from the quality of the build, to the way the nuts and bolts are packaged. The manual is comprehensive, giving the end user the confidence in their new purchase.

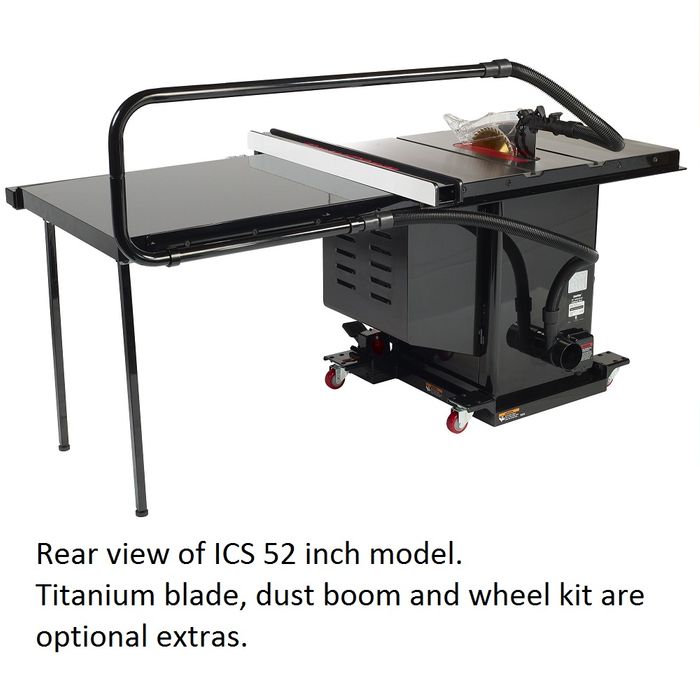

Assembling the saw on a mobile base means it can be moved into position easily, and then moved out of the way in the future. This model comes with a 52" rail.
It is recommended that a spare blade and brake are bought at the time of purchase.
- 2 Cast Iron Extension Wings

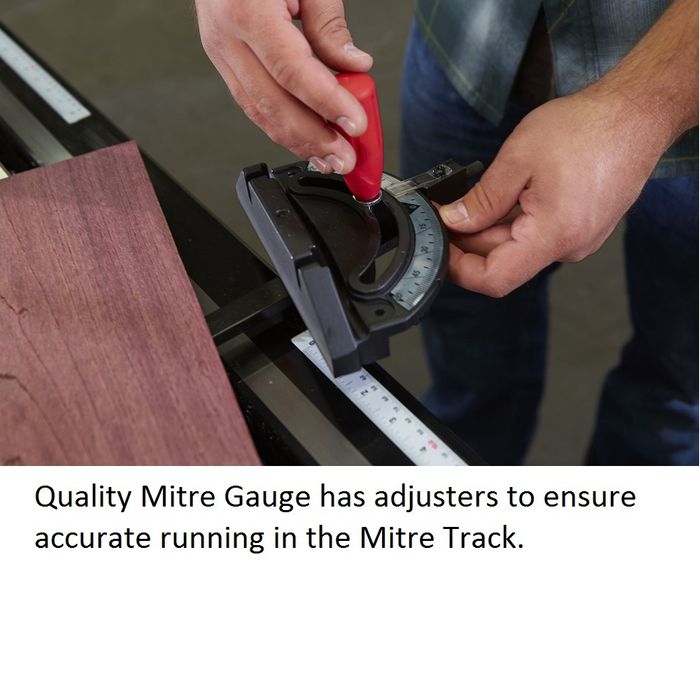

- Miter Gauge

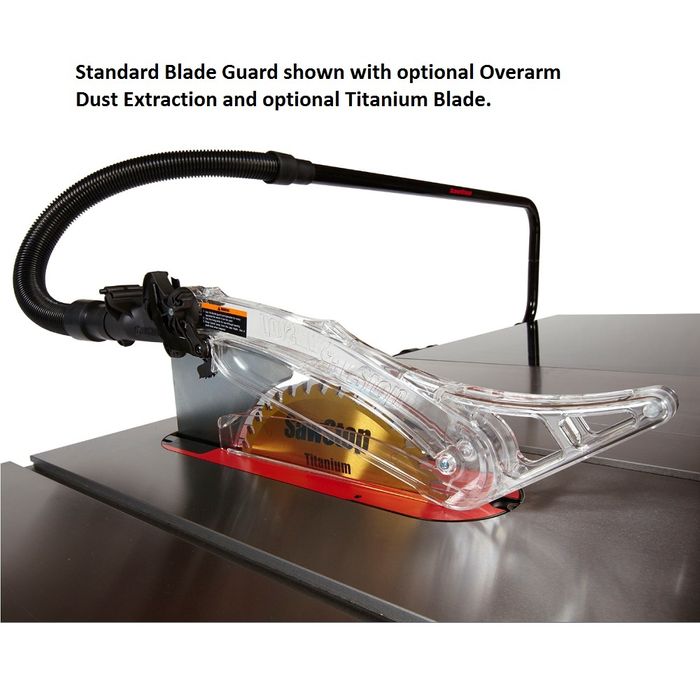

- Dust Collection Blade Guard
- Riving Knife
- 2 Blade Wrenches
- Push Stick
- 10" Blade
- Standard Brake Cartridge
- Owner’s Manual
- 2 Hardware Packs
- 3mm Hex Key
- 5mm Hex Key
- 8mm Hex Key
- Blade Spacing Adjustment Gauge
Motor 2.2kW (3.0HP) Induction, 15A plug
Switch Type Special Type
Blade Diameter 10"
Arbor Diameter 5/8"
Maximum Cut At 45° 57mm
Maximum Cut At 90° 79mm
Blade Guard Clear, Tilting - Rise & Fall
Blade Tilt Left
Dado Capable 19mm Maximum
Drive Type Ribbed V Belt (AntiStatic)
Dust Port 4"
Maximum Rip Capacity 52" or 1320mm
Mitre Gauge Included Yes
Riving Knife Style Rise and Fall, Quick Release
Speed 4200 RPM
Stand Included Or Integral Enclosed Cabinet
Table Size 2140mm x 686mm
Workshop Footprint (WxDxH) 2165mm x 1015mm
Anti Kickback Pawls? Yes
Fence Style T Glide Steel
Warranty Period 2 years (Motor 5 Years)
Shipping Weight 335kg
Nett Weight 310Kg
