Nova Infinity Smooth Col. Jaw #1 ***
Description
Teknatool Code 8321
SUITS INFINITY CHUCK ONLY
32mm to 49mm expanding hold in a recess.
12mm to 29mm contracting hold of a spigot or bowl foot.

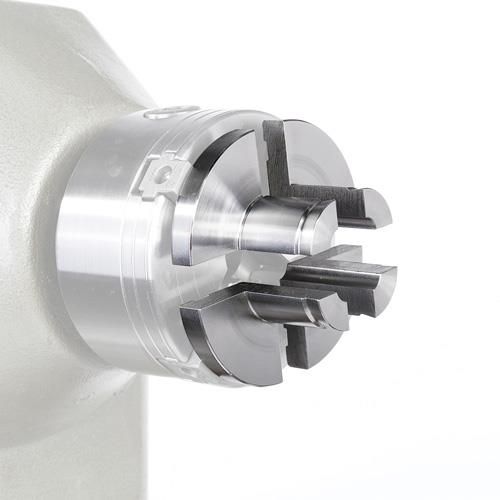

The Smooth Column Jaw Series are designed to provide positive holding but with minimal marking of the work piece. They are ideal for box projects, peppermills or any hollow form project where a softer but firm grip is desirable and work marks need to be minimized. The Smooth Column Jaws can also be used as an internal expanding ‘Pin Jaw’ mounting.

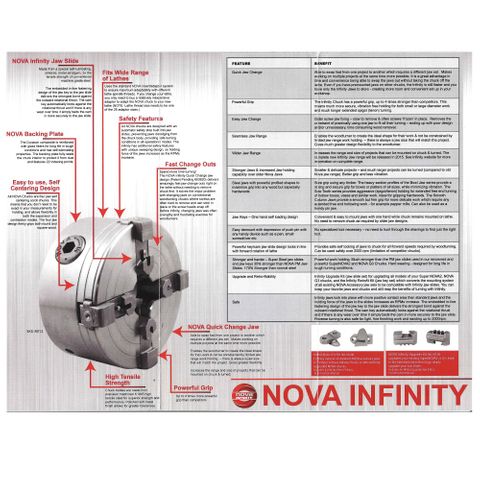

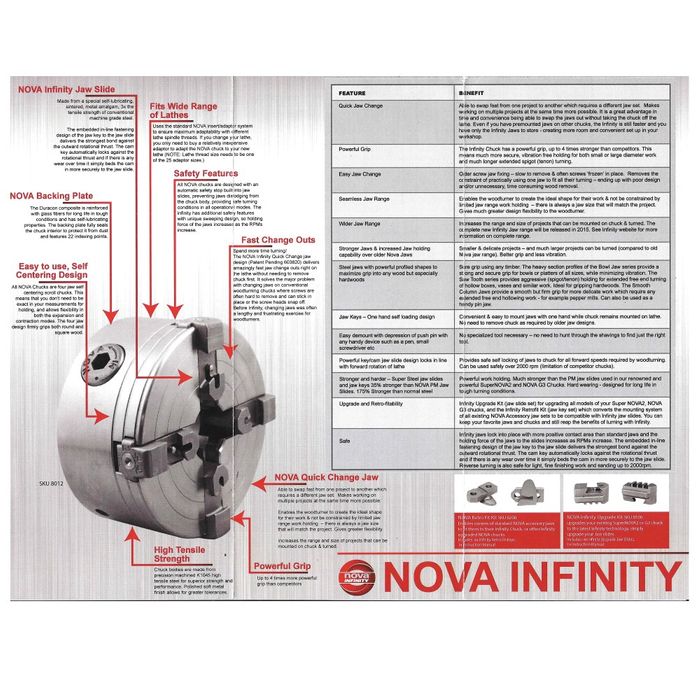

The NOVA Infinity Quick Change delivers fast and positive jaw changes which are much faster and less hassle than the screw fastening method with the older NOVA chuck models and other chuck brands. The NOVA Infinity Jaw Key and Infinity Jaws Slides are a precision cast metal amalgam 3x the tensile strength of machine grade steel. Jaw Key positively taper cam locks into Jaw slide with an embedded dovetail design. A more rigid bond than the original NOVA Screw on Jaws. The Infinity Jaws are taper cam locked in line with the forward rotation of the chuck. They are safe to use at higher speeds and with larger turning work. The Infinity Jaws are larger, more robust and rigid than the older jaw designs, providing enhanced work holding and turning possibilities. The Infinity Jaws use the well proven NOVA Dovetail Profile, designed to grip the wood firmly for added safety.
Benefits;
* Smooth Column Jaws provide strong grip for boxes, pepper mills and similar work without marking the project.
* Can be used for handy 'pin chuck' mounting of bowls for outside turning.
* Longer grip than traditional Nova Pin Jaw - 42mm (1.64") versus only 34mm (1.34")
* Grips a 1/2" (12.7mm) - 1" (25.4mm) plus dowels .
* Longer extension than Traditional Nova Pin Jaw (32mm (1.26") vs 25mm (0.98") away from chuck face so inside/outside of bowl can be turned.
SKU 8321Standard Equipment:4 x Infinity Smooth Column Jaws #, 1 x Instruction Manual
Jaws only, does not include the chuck that the jaws mount on to.
-
