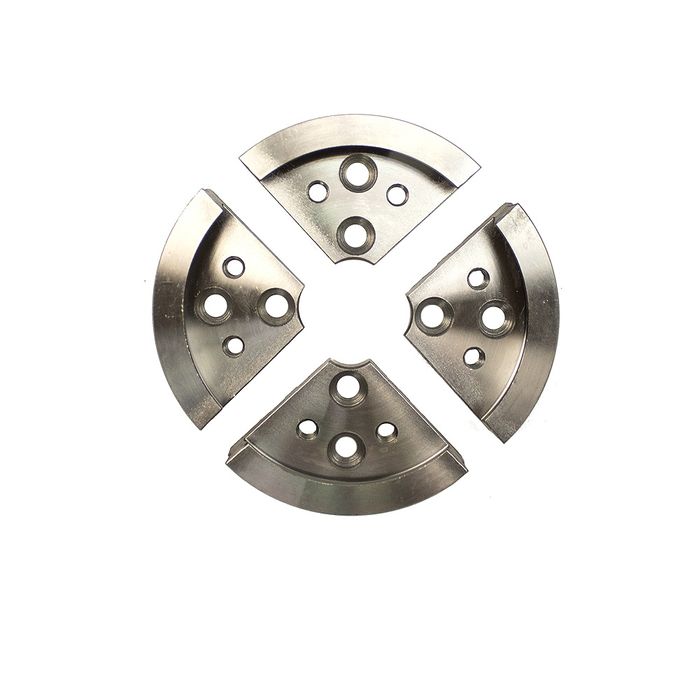

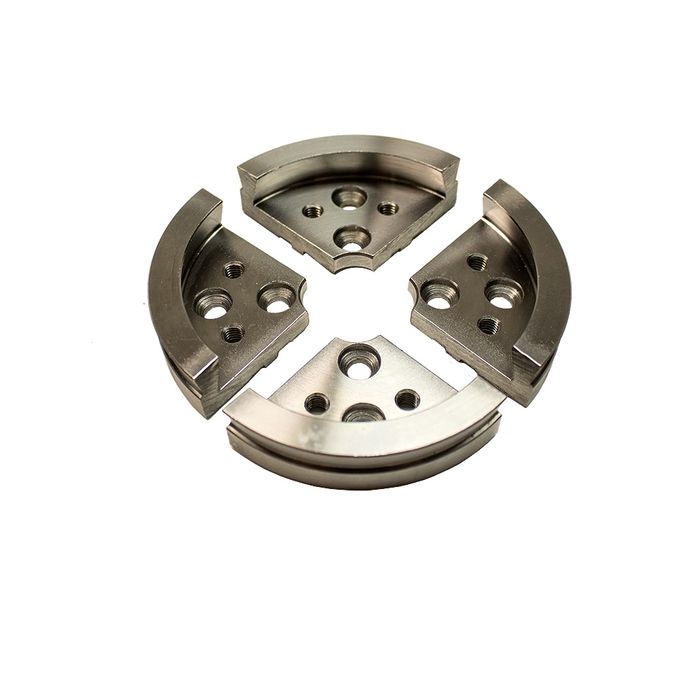

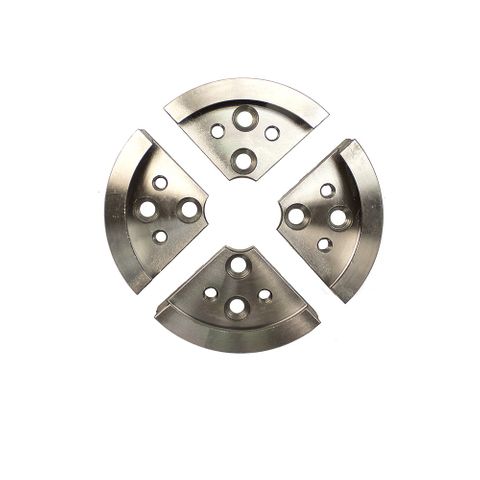

Nova 100mm (4") Jaw Set

Stock Code:
TK-JS100N
Price:
$109.00 inc GST

Description

The 100mm jaw sets are designed for an expanded dovetail grip (up to 14inch dia); reverse dovetail grip for gripping footed bowls; limited spigot facility (up to 6inch long) and provision to mount false wooden jaws; so customised jaws can be made for special purposes. They are made for a larger range of work than the standard 50mm jaws or Step Jaws. One of our most popular jaws to mount 12inch-14inch bowls. Can mount false wooden jaws; so customised jaws can be made for special purposes. (Require Fastenings)

Features standard on all NOVA Jaws:

Full Cross Function - Only NOVA Chucks give you the same jaw fixing system and same insert/adaptor system across all chuck models. This means all accessory jaws in the range fit all the chucks in the range; including older chuck models*; giving you the ultimate flexibility. In buying a NOVA chuck; you can be confident that whether you want to move up or down the range; any accessories you have invested in will fit.

Special Dovetail Profile - NOVA chucks have been especially designed so the jaws will cut into the wood, grip firmly in the contraction mode and provide high tear out strength.
Some chucks use an engineering jaw profile (designed to hold a hard material like steel) or rounded profiles, which just crush the wood fibres without digging in and holding securely.

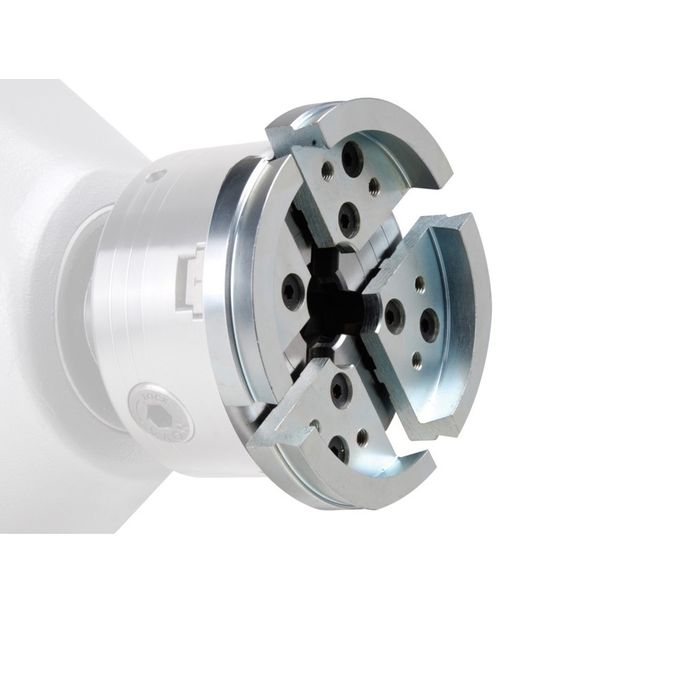

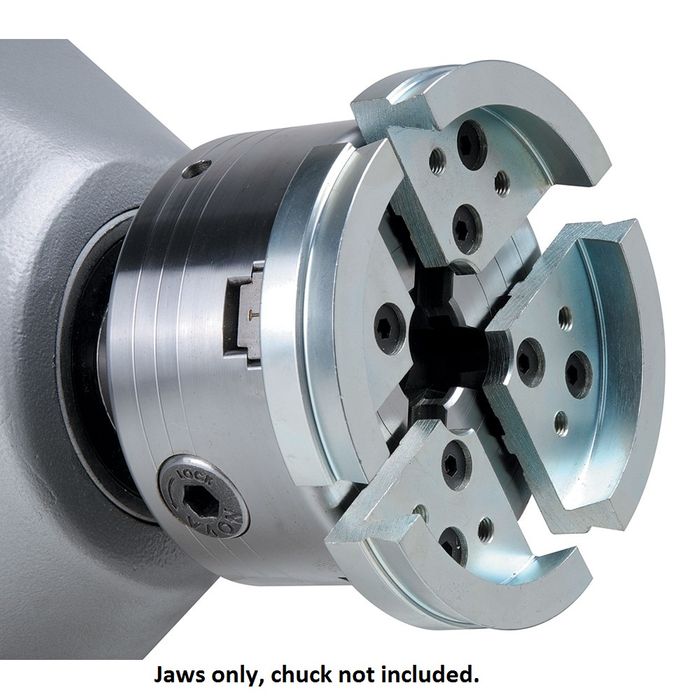

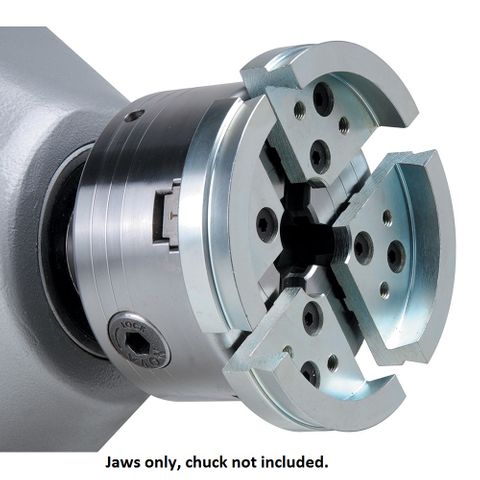

Jaws only, does not include the chuck that the jaws mount on to.

Jaw Travel Information for use on a SuperNova or G3 Chuck
- Expanding action gripping inside a round recess - 97 to 118mm diameter
- Contracting action on square stock - 56 to 77mm square
- Contracting action on a round spigot (foot) - 78 to 99mm diameter

  • Auckland
    Available
  • Christchurch
    Available
