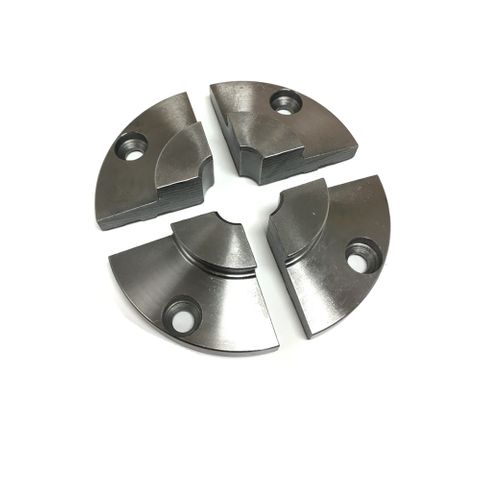

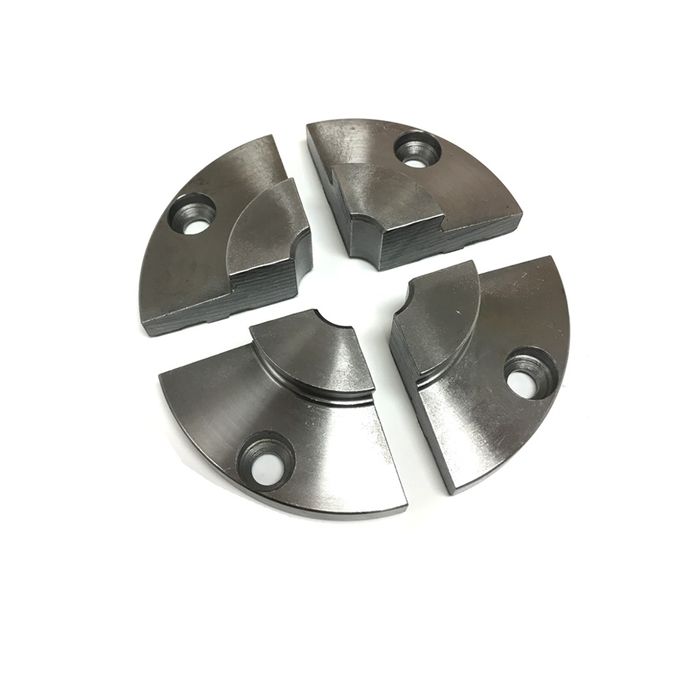

Nova 35mm (1.35") Bowl Jaw Set

Stock Code:
TK-6019
Price:
$64.00 inc GST

Description

The 35mm bowl jaws fit perfectly into the current jaw range; picking up a small gap left between the 25mm and the 50mm. These jaws are perfect for small to medium sizes with maximum grip; provided by the dovetail. Features standard on all NOVA Jaws: Full Cross Function: Only NOVA Chucks give you the same jaw fixing system and same insert/adaptor system across all chuck models. This means all accessory jaws in the range fit all the chucks in the range; including older chuck models; giving you the ultimate flexibility. In buying a NOVA chuck; you can be confident that whether you want to move up or down the range; any accessories you have invested in will fit.

Special Dovetail Profile: NOVA chucks have been especially designed so the jaws will cut into the wood; grip firmly in the contraction mode and provide high tear out strength. Some chucks use an engineering jaw profile (designed to hold a hard material like steel) or rounded profiles; which just crush the wood fibres without digging in and holding securely.

Jaws only, does not include chuck that the jaws mount on to.

Jaw Travel Information for use on a SuperNova or G3 Chuck
- Expanding action gripping inside a round recess - 38 to 59mm diameter
- Contracting action on square stock - 8 to 29mm square
- Contracting action on a round spigot (foot) - 10 to 31mm diameter

  • Auckland
    Available
  • Christchurch
    Limited Stock
